Product Features

Maintanence free plastic linear bearings. Low noise operation is suitable for continous application under the extremely dusty environment. It is washable by the clean detergent of the food machine. There is no critical requirement about the shaft hardness or the mounting holes of the housing.
● Maintenance-free, dry operation, low noise
● Suitable for long-time running in dusty environments
● Corrosion resistance; Cleaning with disinfectant lotion
● Straight grooves design removed the dust from the friction surface

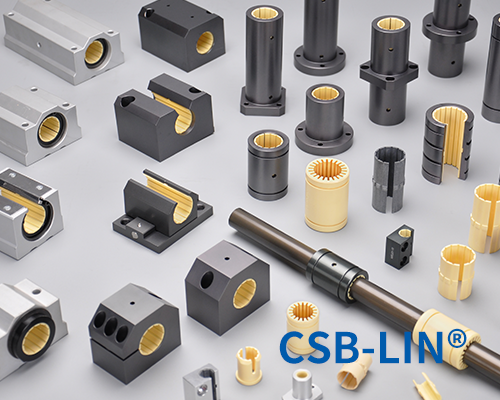

LIN-11 Plastic linear bearing liners

● Closed design sliding liners
● Self-lubricating and dust resistance
● Made of anti-wear material EPB13,MN2,EPB5,MN60

Details

LIN-12 Plastic linear bearing liners

● Short design sliding liners
● Self-lubricating and dust resistance
● Made of anti-wear material EPB13,MN2,EPB5

Details

LIN-11K Plastic linear bearing liners

● Opening design sliding liners
● Self-lubricating and dust resistance
● Made of anti-wear material EPB13,MN2,EPB5

Details

LIN-13 Plastic linear bearing liners

● Closed design sliding liners
● Self-lubricating and dust resistance
● Made of anti-wear material EPB13
● Fitted very easy

Details

▊CSB-LIN^® liners technical data table

Material properties	Standard	Unit	CSB-EPB13	CSB-MN2	CSB-EPB5	CSB-MR4	CSB-MN7
General properties
Color	-	-	Yellow	Dark grey	Black	Grey	Grey
Density	ISO1183	g/cm³	1.48	1.72	1.44	1.48	1.05
Max. moisture absorption, 50%RH	ISO62	%	0.3	0.2	0.1	0.3	0.1
Max. water absorption	ISO62	%	1.3	0.7	0.5	1.3	0.1
Coefficient of sliding friction(steel)	ITS025	µ	0.05-0.15	0.10-0.18	0.09-0.25	0.05-0.20	0.05-0.15
Max. PV value	ITS026	N/mm²×m/s	0.40	0.3	1.40	0.30	0.30
Mechanical properties
Flexural modulus	ISO178	MPa	2800	2800	4800	2350	650
Flexural strength	ISO178	MPa	60	53	165	60	20
Max. static load	ITS027	MPa	35	30	110	35	20
Max. dynamic load	ITS028	MPa	14	12	61	14	5
Shore hardness	ISO868	D	74	73	82	74	61
Physical and thermal properties
Long-term application temperature	ITS029	℃	+90	+90	+250	+90	+70
Short-term application temperature	ITS029	℃	+120	+120	+315	+120	+90
Lowest application temperature	ITS029	℃	-50	-50	-100	-50	-50
Thermal conductivity	ISO22007	W/m/K	0.25	0.24	0.55	0.25	0.20
Coefficient of thermal expansion	ISO11359	K^-1×10^-5	10	8	6	10	16
Flammability	UL94	Class	HB	HB	V0	HB	HB
Electrical properties
Volume resistance	IEC60093	Ω·cm	>10¹³	>10⁸	>10⁸	>10¹³	>10⁹
Surface resistance	IEC60093	Ω	>10¹²	>10⁸	>10⁷	>10¹²	>10⁹

*ITS：CSB company’s internal test standards. **Test temperatures are 23℃ unless otherwise stated.

Supported shafts

Compact and low high design support;

Standard design support;

3 materials shaft: Hard anodized aluminum shaft, Hardchromed steel shaft, 304 Stainless steel shaft;

Details

Precision shafts

AS: Hard anodized aluminum shaft, the best shaft for LIN linear bearings; CS: Hard-chromed steel shaft, the effective-cost shaft; ES: 304 Stainless steel shaft, the best for chemical liquid; Shaft end processing service...

Details

▊CSB-LIN® Eccentric forces

●Maximum 2:1 ratio
●1x =bearing separation on same shaft
●2x =distance from shaft to load or force

CSB-LIN® Precision linear bearings

●CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !
This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.
There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.
NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.
If you have any questions on design and/or assembly, please contact our application engineers.

CSB®LIN-12 Plastic linear bearing liners, Short design 3320

Time 03-2020

Type PDF

No. CSB/CAT.052

Size 114KB

3320

download

CSB®LIN-11 Plastic linear bearing liners 3399

Time 03-2020

Type PDF

No. CSB/CAT.052

Size 110KB

3399

download

CSB®LIN-11K Plastic linear bearing liners, Opening design 3199

Time 03-2020

Type PDF

No. CSB/CAT.052

Size 118KB

3199

download

CSB-LIN®

Plastic Linear Bearings Finder V2.0

view tools

CSB-LIN® Plastic Linear Bearings Finder V2.0

▊CSB-LIN® Plastic Linear Bearings Finder[V2.0] including LIN plastic linear bearings and LINP precision linear bearings. The system is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations bearing data by entering parameters such as bearing load, speed, temperature and position information, The system will output bearing adaptation data and min. driving force.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-LIN® Plastic Linear Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.
