Polymer-tech SolutionsTM

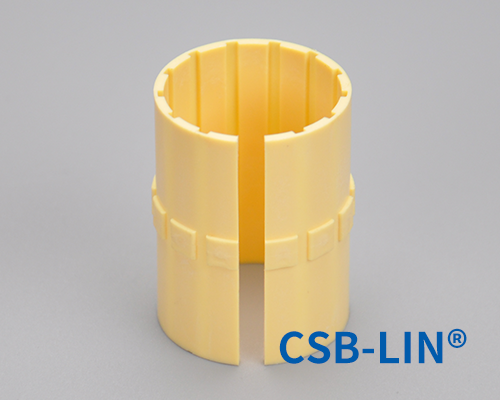

● Short design sliding liners
● Self-lubricating and dust resistance

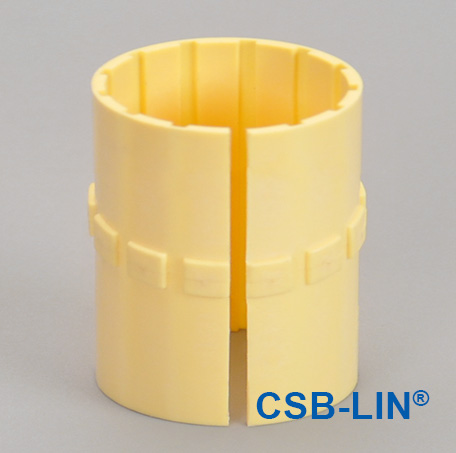

● Made of anti-wear material EPB13

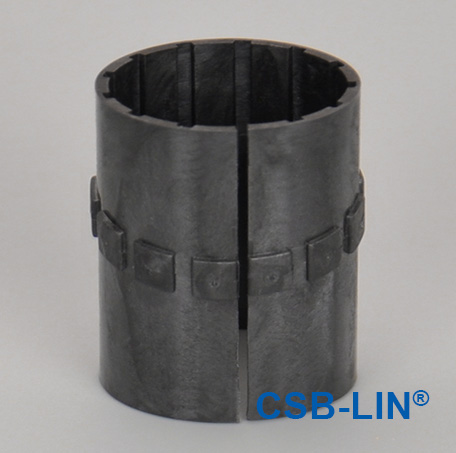

● Aluminum shaft liner MN2

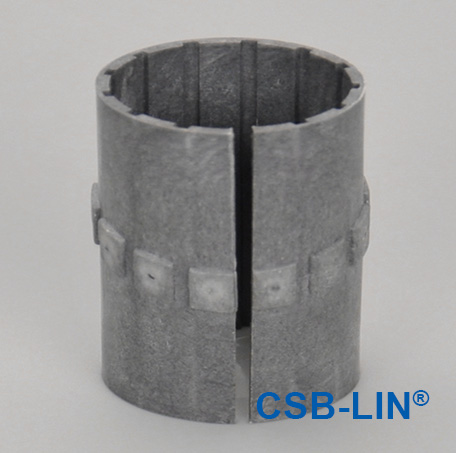

● 250℃ High-temp. EPB5

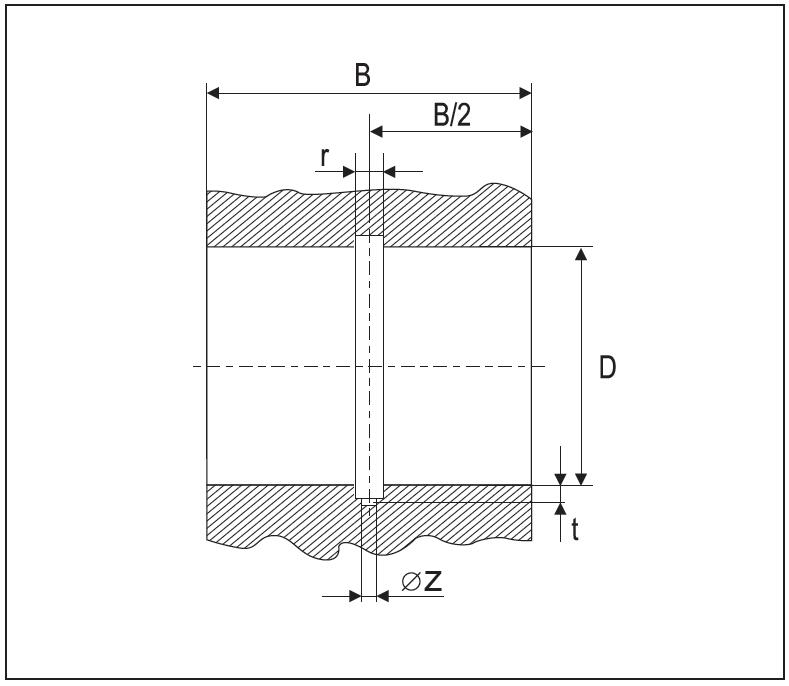

| Part No. | Shaft [mm] | D H7 [mm] | B h10 [mm] | r+0.5 [mm] | t+0.05 [mm] | Z+0.2 [mm] |  |
| LIN-12-10 | 10 | 12 | 26 | 3.0 | 0.8 | 2.6 | |
| LIN-12-12 | 12 | 14 | 28 | 3.0 | 1.0 | 3.1 | |
| LIN-12-16 | 16 | 18 | 30 | 3.5 | 1.2 | 3.6 | |
| LIN-12-20 | 20 | 23 | 30 | 5.0 | 1.2 | 3.6 | |
| LIN-12-25 | 25 | 28 | 40 | 5.0 | 1.5 | 4.1 | |
| LIN-12-30 | 30 | 34 | 50 | 5.0 | 1.5 | 4.1 | |
| LIN-12-40 | 40 | 44 | 60 | 6.0 | 2.0 | 5.0 | |
| LIN-12-50 | 50 | 55 | 70 | 7.0 | 2.0 | 6.1 |
▊CSB-LIN® Plastic Linear Bearings Finder[V2.0] including LIN plastic linear bearings and LINP precision linear bearings. The system is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations bearing data by entering parameters such as bearing load, speed, temperature and position information, The system will output bearing adaptation data and min. driving force.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-LIN® Plastic Linear Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.
● Floating design linear bearings
● Assembled standard liner LIN-11
● Compensation of parallelism errors ±3.0mm
● Compensation of mialignment errors ±3.5°
● Pillow block design
● Standard,short and long design
● Adjustable design to available
● Secured by bolts
● Linear bearing with housing
● Standard, Short and Long design
● Secured by bolts
● Round flange and square flange design
● Standard and long design
● Secured by bolts
● Anodized aluminum adapter
● Opening design linear bearings
● Self-aligning design
● Assembled standard liner LIN-11K
● Closed design linear bearings
● Standard long and short design
● Self-aligning design
● Made of anti-wear plastic
● Higher sewage capacity
● Low-cost solution
