Product Features

C03H.80 high-strength cable carrier is an improved version based on C03 cable carrier. High-strength materials and stable structural design for C03H higher load performance. The special crossbar design allows the inner width of the carrier to be freely defined.

● Inner height： 80 mm
● Inner width： 200-600 mm
● Bend radius：150-500 mm
● Link pitch：111 mm

Cable chains

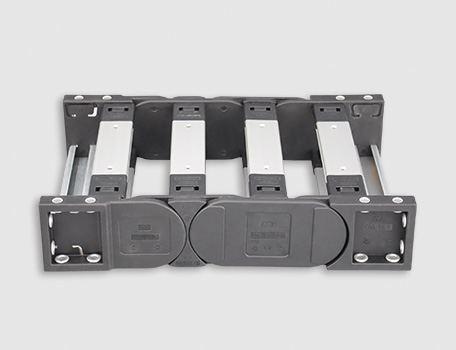

The number of links is even - Locking

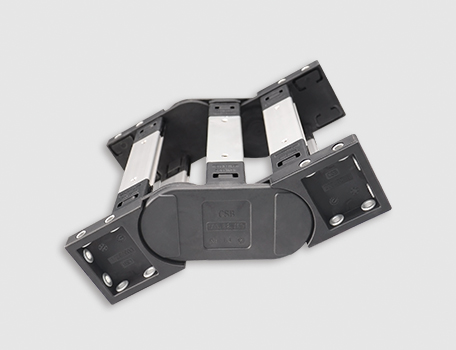

The number of links is odd - Locking

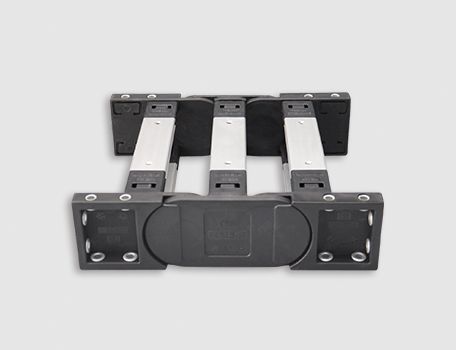

The number of links is even - Pivoting

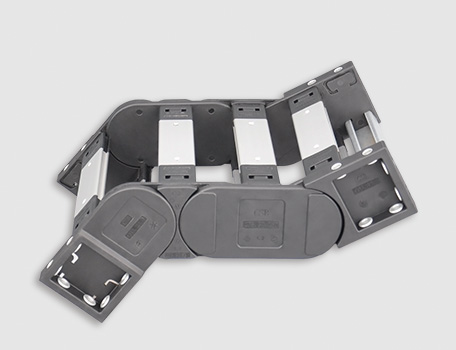

The number of links is odd - Pivoting

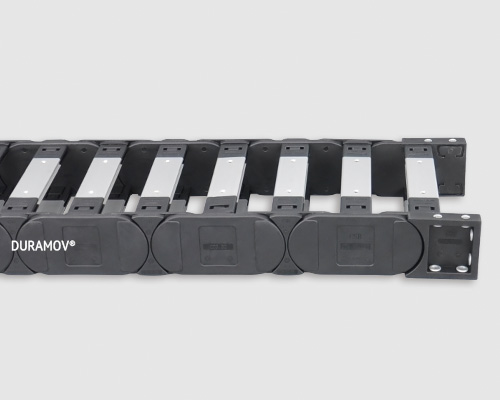

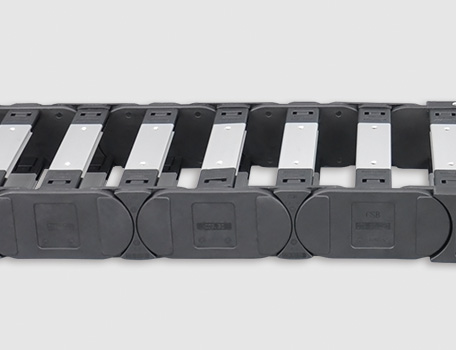

C03H.80 High-strength cable carriers

Part no.:

Download CAD

Cart

Shooping

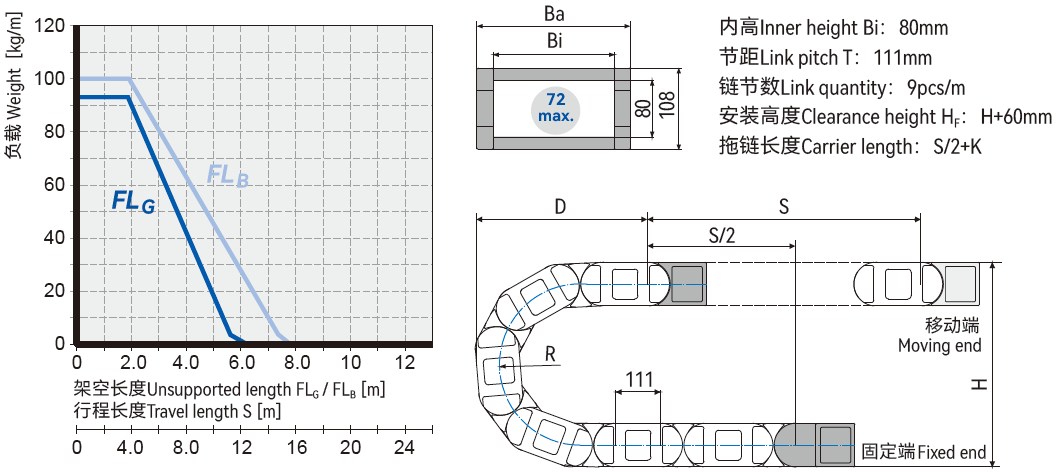

Dimensions

▊Installation dimensions

Unsupported length	≤ 5.8m	Speed / acceleration FL_G	≤ 20 [m/s] / 200 [m/s² ]
Sliding length	≤ 400m	Speed / acceleration FL_B	≤ 3 [m/s] / 6 [m/s² ]
Vertical hanging	≤ 60m	Sliding speed / acceleration	≤ 10 [m/s] / 50 [m/s² ]
Vertical standing	≤ 4.0m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 3.0m	Flammability Class	UL94 HB

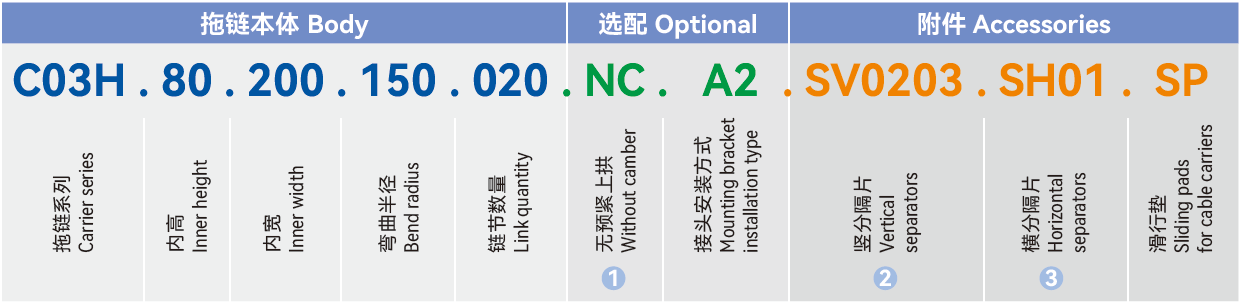

▊Order code for pre-assembled cable carriers


① Upon request for NC version without camper
② SV0203: Install 3pcs vertical separators every other 2pcs blank links
③ SH01: Horizontal separator 1pc installed in the middle hole

BL Bellows

BL bellows is suitable for use in general mechanical applications, The good anti-freezing ability and self-extinguishing properties can be used in automotive industries. The bellows keep high impact resistance in ...

Details

Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.

Details

Sliding pads for cable carriers

● Used for C03 cable chains long stroke protection

● Made of friction-optimized wear-resistant composite plastic

● Rugged and durable, extend the life of the cable carrier

Details

C-profile brackets for C03 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

Details

Vertical separators for C03 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be ﬁrmly ﬁtted in carriers

Details

▊ Installation

▊Installation dimensions


*Please consult CSB® if space is particularly restricted.

R	150	200	250	300	350	400	450	500
H	408	508	608	708	808	908	1008	1108
D	445	495	545	595	645	695	745	795
K	693	850	1007	1164	1321	1479	1635	1793

*The required clearance height：H_F=H+40mm（Fill weight 2.5kg/m)

▊C03H.80 For long travels gliding applications | 12-400m


R	150	200	250	300	350	400	450	500
H2	242	242	242	242	242	242	242	242
D2	550	800	1000	1200	1450	1600	1850	2100
K2	890	1330	1665	2000	2330	2660	3050	3440
△CL	189	389	539	689	889	989	1189	1389

▊Mounting bracket installation optional

High load cable chains mounting bracket installation optional

*C03H.80 Possible installation configurations
*Depending on the number of links is odd or even. A1 for odd-numbered links and A2 for even-numbered links.

▊C03H.80.Bi.01.P.C

High load cable chains special optional

*For unsupported and gliding applications

High load cable chains S-shaped Standing

*S-shaped Standing
