Product Features

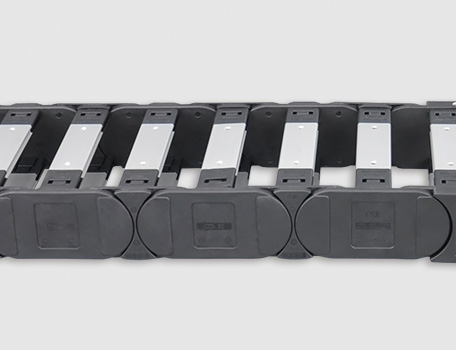

C03H.56 high-strength cable carrier is an improved version based on C03 cable carrier. High-strength materials and stable structural design for C03H higher load performance. The special crossbar design allows the inner width of the carrier to be freely defined.

● Inner height：56 mm
● Inner width：200-600 mm
● Bend radius：135-500 mm
● Link pitch：91 mm

Cable chains

The number of links is even - Locking

The number of links is odd - Locking

The number of links is even - Pivoting

The number of links is odd - Pivoting

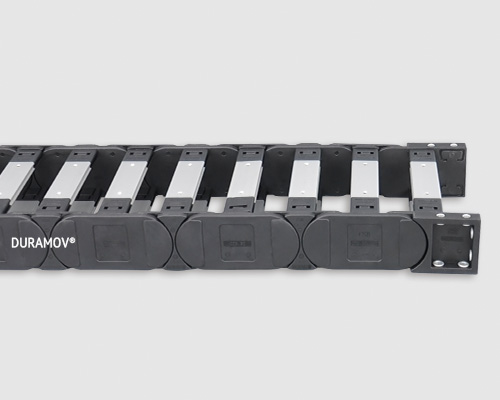

C03H.56 High-strength cable carriers

Part no.:

Download CAD

Cart

Shooping

Dimensions

▊Installation dimensions

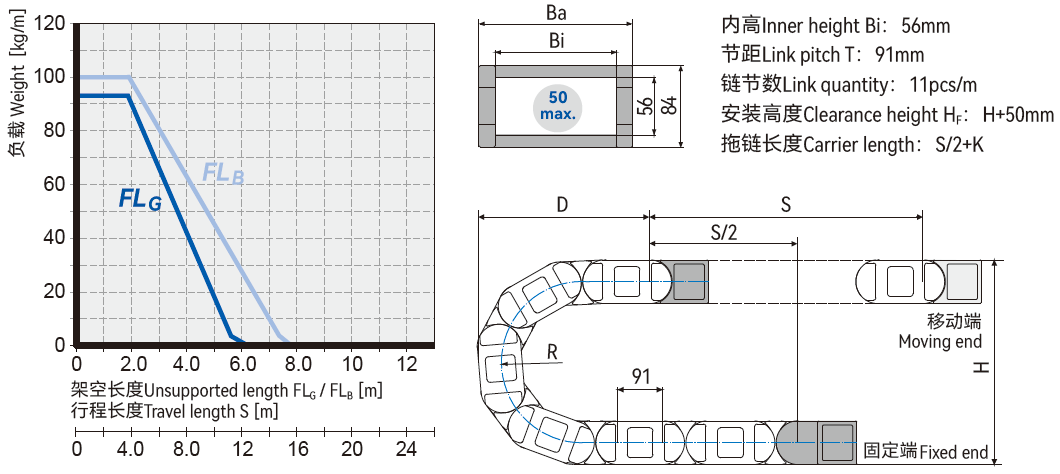

Unsupported length	≤ 5.0m	Speed / acceleration FL_G	≤ 20 [m/s] / 200 [m/s² ]
Sliding length	≤ 400m	Speed / acceleration FL_B	≤ 3 [m/s] / 6 [m/s² ]
Vertical hanging	≤ 50m	Sliding speed / acceleration	≤ 10 [m/s] / 50 [m/s² ]
Vertical standing	≤ 3.0m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 2.5m	Flammability Class	UL94 HB

▊Order code for pre-assembled cable carriers


① Upon request for NC version without camper
② SV0203: Install 3pcs vertical separators every other 2pcs blank links
③ SH01: Horizontal separator 1pc installed in the middle hole

BL Bellows

BL bellows is suitable for use in general mechanical applications, The good anti-freezing ability and self-extinguishing properties can be used in automotive industries. The bellows keep high impact resistance in ...

Details

Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.

Details

Sliding pads for cable carriers

● Used for C03 cable chains long stroke protection

● Made of friction-optimized wear-resistant composite plastic

● Rugged and durable, extend the life of the cable carrier

Details

C-profile brackets for C03 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

Details

Vertical separators for C03 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be ﬁrmly ﬁtted in carriers

Details

▊ Installation

▊Installation dimensions


*Please consult CSB® if space is particularly restricted.

R	135	150	175	200	250	300	350	400	450	500
H	354	384	434	484	584	684	784	884	984	1084
D	314	329	354	379	429	479	529	579	629	679
K	610	655	735	815	970	1125	1285	1440	1600	1755

*The required clearance height：H_F=H+40mm（Fill weight 2.5kg/m)

▊C03H.56 For long travels gliding applications | 12-400m


R	135	150	175	200	250	300	350	400	450	500
H2	270	266	266	266	266	266	266	266	266	266
D2	268	450	580	710	980	1180	1440	1530	1700	1850
K2	610	819	1092	1274	1638	2002	2275	1548	2912	3276
△CL	-	159	259	359	559	709	905	959	1059	1159

▊Mounting bracket installation optional

High load cable chains mounting bracket installation optional

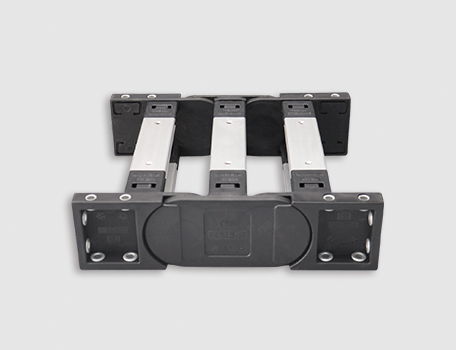

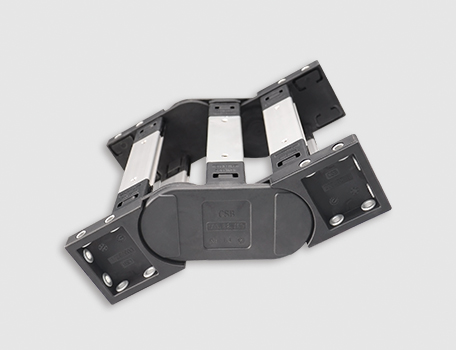

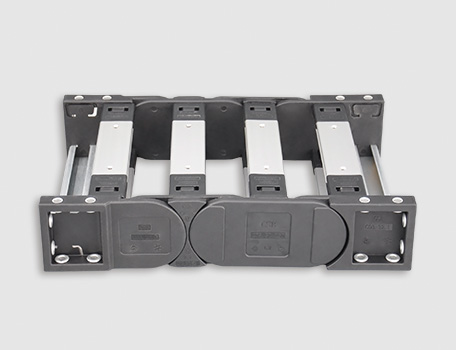

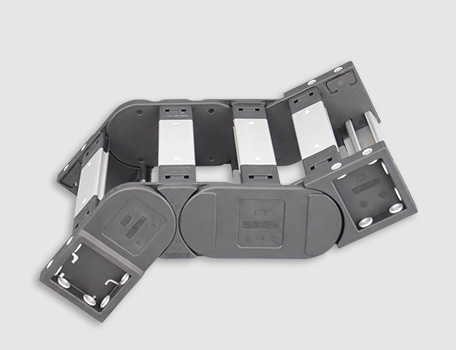

*C03H.56 Possible installation configurations
*Depending on the number of links is odd or even. A1 for odd-numbered links and A2 for even-numbered links.

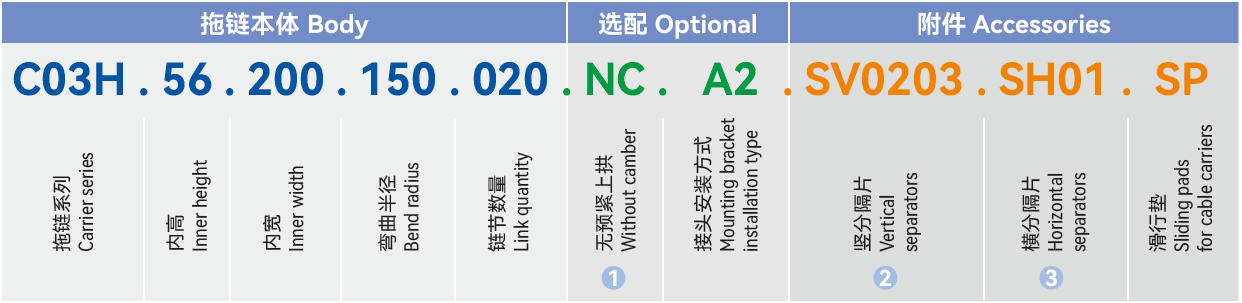

▊C03H.56.Bi.01.P.C

High load cable chains special optional

*For unsupported and gliding applications

High load cable chains S-shaped Standing

*S-shaped Standing

C03H High-strength cable carriers 670

Time 10-2024

Type PDF

No. CSB/CAT.067

Size 789KB

670

download
