Product Features

C03H.42 high-strength cable carrier is an improved version based on C03 cable carrier. High-strength materials and stable structural design for C03H higher load performance. The special crossbar design allows the inner width of the carrier to be freely defined.

● Long-term application temperature：-40/+120℃

● Inner height：42 mm
● Inner width：200-400 mm
● Bend radius：75-350 mm
● Link pitch：67 mm

Cable chains

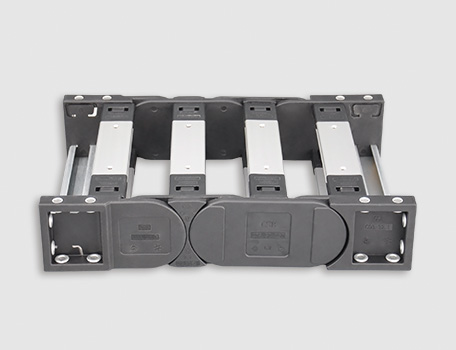

The number of links is even - Locking

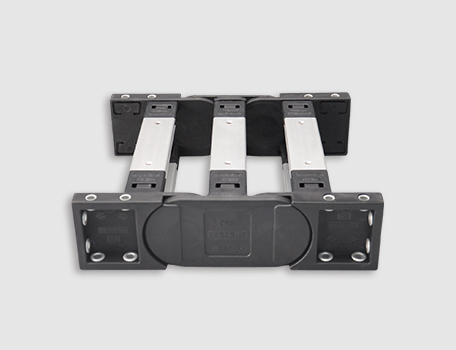

The number of links is odd - Locking

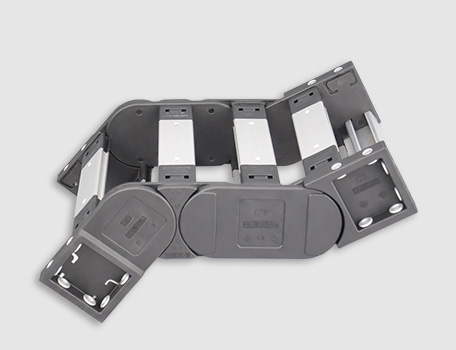

The number of links is even - Pivoting

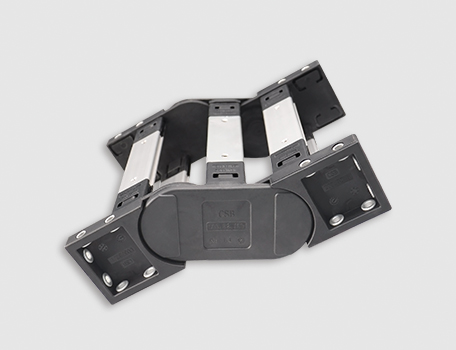

The number of links is odd - Pivoting

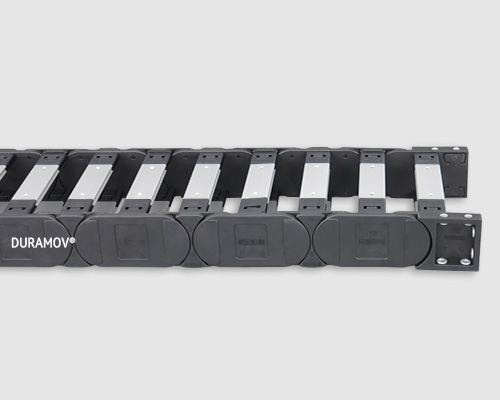

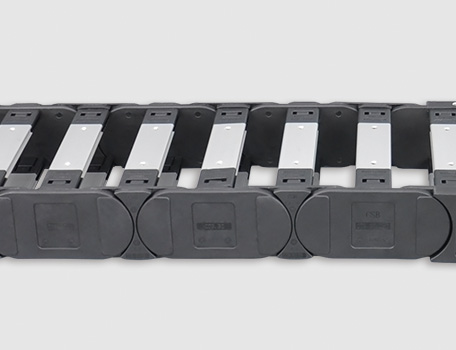

C03H.42 High-strength cable carriers

Part no.:

Download CAD

Cart

Shooping

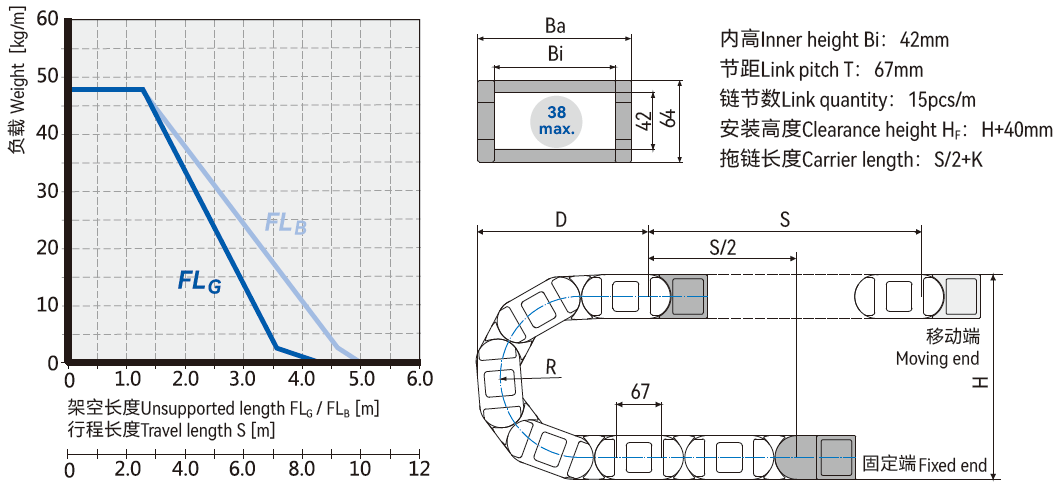

Dimensions

▊Installation dimensions

Unsupported length	≤ 4.2m	Speed / acceleration FL_G	≤ 20 [m/s] / 200 [m/s² ]
Sliding length	≤ 300m	Speed / acceleration FL_B	≤ 3 [m/s] / 6 [m/s² ]
Vertical hanging	≤ 40m	Sliding speed / acceleration	≤ 10 [m/s] / 50 [m/s² ]
Vertical standing	≤ 3.0m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 2.1m	Flammability Class	UL94 HB

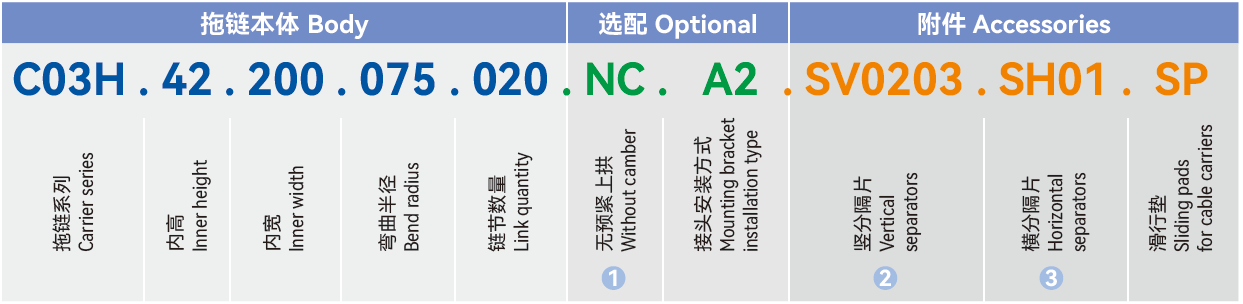

▊Order code for pre-assembled cable carriers


① Upon request for NC version without camper
② SV0203: Install 3pcs vertical separators every other 2pcs blank links
③ SH01: Horizontal separator 1pc installed in the middle hole

BL Bellows

BL bellows is suitable for use in general mechanical applications, The good anti-freezing ability and self-extinguishing properties can be used in automotive industries. The bellows keep high impact resistance in ...

Details

Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.

Details

Sliding pads for cable carriers

● Used for C03 cable chains long stroke protection

● Made of friction-optimized wear-resistant composite plastic

● Rugged and durable, extend the life of the cable carrier

Details

C-profile brackets for C03 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

Details

Vertical separators for C03 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be ﬁrmly ﬁtted in carriers

Details

▊ Installation

▊Installation dimensions


*Please consult CSB® if space is particularly restricted.

R	075	100	125	150	175	200	250	300	350
H	214	264	314	364	414	464	564	664	764
D	208	233	258	283	308	333	383	433	483
K	370	450	530	610	685	765	920	1080	1235

*The required clearance height：H_F=H+40mm（Fill weight 2.5kg/m)

▊C03H.42 For long travels gliding applications | 12-300m


R	075	100	125	150	175	200	250	300	350
H2	150	200	186	186	186	186	186	186	186
D2	174	199	475	570	670	780	1030	1150	1500
K2	370	450	804	938	1139	1340	1675	1943	2412
△CL	-	-	230	300	380	460	660	730	1030

▊Mounting bracket installation optional

High load cable chains mounting bracket installation optional

*C03H.42 Possible installation configurations
*Depending on the number of links is odd or even. A1 for odd-numbered links and A2 for even-numbered links.

▊C03H.42.Bi.01.P.C

High load cable chains special optional

*For unsupported and gliding applications

High load cable chains S-shaped Standing

*S-shaped Standing
