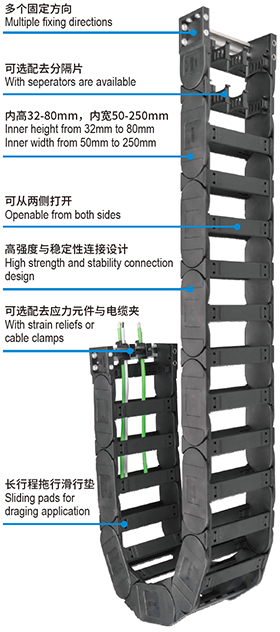

Product Features

C03 high load cable carriers combines all the advantages of the previous versions and is the best DURAMOV® carriers in the product range. C03 cable carriers is stronger whilst having the same or even smaller dimensions than previous versions. You can increase the service life of your application with C03 cable carriers whilst reducing cost.

● Attachment from any side with mounting brackets

● Long service life: lateral sliding surfaces design

● High strength and stable: due to undercut design, high ﬁll weight available

● Fast assembly: easy assembly with quick lock crossbars

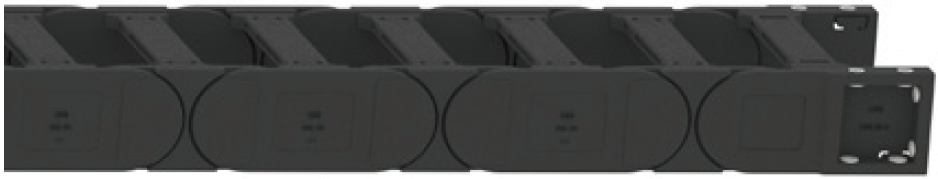

C03.32 High load cable carriers

● Inner height：32 mm

● Inner width：50-200 mm
● Bend radius：63-300 mm
● Link pitch：56 mm

Details

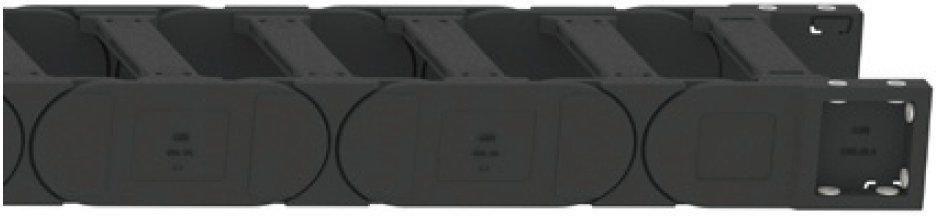

C03.42 High load cable carriers

● Inner height：42 mm

● Inner width：50-200 mm
● Bend radius：75-350 mm
● Link pitch：67 mm

Details

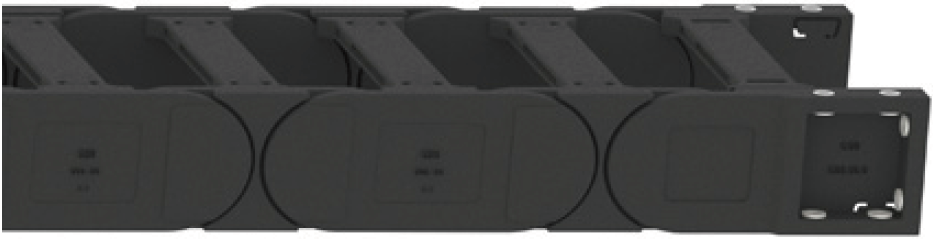

C03.56 High load cable carriers

● Inner height：56 mm
● Inner width：100-300 mm
● Bend radius：135-500 mm
● Link pitch：91 mm

Details

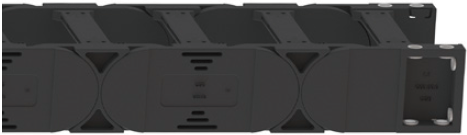

C03.80 High load cable carriers

● Inner height：80 mm
● Inner width：100-300 mm
● Bend radius：150-500 mm
● Link pitch：111 mm

Details

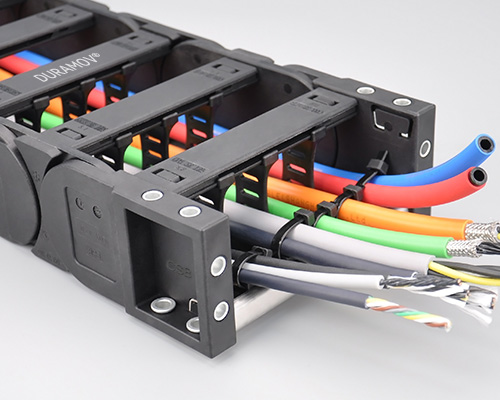

▊ Product introduction

C03 high load cable carriers combines all the advantages C03 High load cable chains

of the previous versions and is the best DURAMOV®

carriers in the product range. C03 cable carriers is stronger

whilst having the same or even smaller dimensions than

previous versions. You can increase the service life of

your application with C03 cable carriers whilst reducing cost.

High load cable chains openable from both sides Openable from both sides

High load cable chains flammability Class Flammability Class UL94 HB

High load cable chains CE certification CE certification

High load cable chains RoHS certification RoHS certification

▊ Standard dimensions

High load cable carriers	Part No.	Inner width Bi [mm]	Outer width Ba [mm]	Inner height Hi [mm]	Outer height Ha [mm]	Bend radius R [mm]	Unsupported length [m]
	C03.32	50-200	73-223	32	54	63-300	≤3.0
	C03.42	50-200	76-226	42	64	75-350	≤4.2
	C03.56	100-300	134-334	56	84	135-400	≤5.0
	C03.80	100-300	148-298	80	108	150-500	≤5.8

BL Bellows

BL bellows is suitable for use in general mechanical applications, The good anti-freezing ability and self-extinguishing properties can be used in automotive industries. The bellows keep high impact resistance in ...

Details

Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.

Details

Sliding pads for cable carriers

● Used for C03 cable chains long stroke protection

● Made of friction-optimized wear-resistant composite plastic

● Rugged and durable, extend the life of the cable carrier

Details

C-profile brackets for C03 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

Details

Vertical separators for C03 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be ﬁrmly ﬁtted in carriers

Details

DURAMOV® Cable Chain Test Video

CSB conducts approximately 10 million DURAMOV® cable chain endurance tests at 68 laboratory stations and more than 30 application stations every year. The cable chain test laboratory includes different installation and application tests: short-stroke unsupported installation, vertical hanging, vertical standing, side-mounted and long-stroke sliding tests in outdoor natural climates; The cable chain application station tests include: Application tests of C02 cable chains on machining centers, Application tests of C02 and C06 cable chains on grabbing manipulators or robots, Application tests of C03 cable chains on long-stroke manipulators, Application tests of micro cable chains such as C01 and C31 on high-frequency motion devices...

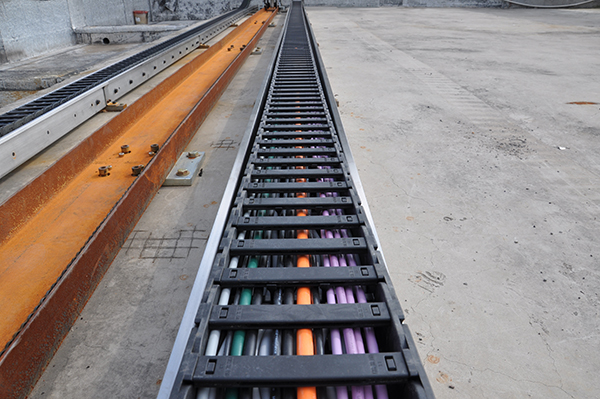

DURAMOV® cable chains application test in manipulators and long travels gliding movements

DURAMOV® cable chains undergo durability testing for robot applications and long-stroke drag and slide applications in a precision shaft production workshop in Anhui, China. C02.25 cable chain is mainly used in the Z-axis and Y-axis of the manipulator, and C03.42 cable chain is mainly used in the long-stroke moving area of the manipulator; the lateral travel about 25 meters, and it performs more than 2,000 cycles every day, and the grabbing movements over 4000 cycles; DURAMOV® cable chain ensures 24-hour trouble-free operation of the automatic production line...

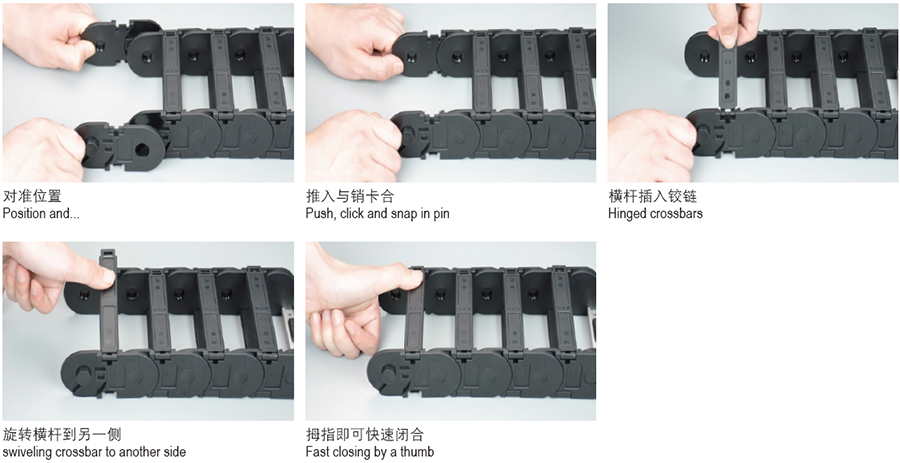

▊ Installation

▊ Distribution rules | Cables and hoses

In order to ensure that the chain is functioning properly and to avoid damage to the cables or hoses, the following principles must be observed when laying cables or hoses:

	▊ This minimum clearance would be 10% for electrical round cables, 20% for hydraulic hoses.
	▊ In order to reduce the possible friction, avoid pipes with different skin materials such as cables or hoses.（eg: cable and hydraulic hoses）
	▊ In applications where multiple cables and hoses are used, in order to avoid mutual friction between them, it is preferable to place them in a suitable separate space and separate them from each other with a spacer. If there are no conditions to achieve, make sure there is enough space between them to avoid mutual friction (H<D).
	▊ The cables or hoses are laid in a symmetrical manner according to their diameter and weight. The largest and heaviest cables are placed on the outside of the section and the small and light cables are placed on the inside.

▊ Typical Applicable Industries and Applications

● Lift plats & cranes

● General mechanical

● Handling machines

● Refrigeration engineering

● Construction machinery

● Woodworking machines

● Stone cutting machines

● Long travel and sliding applications
