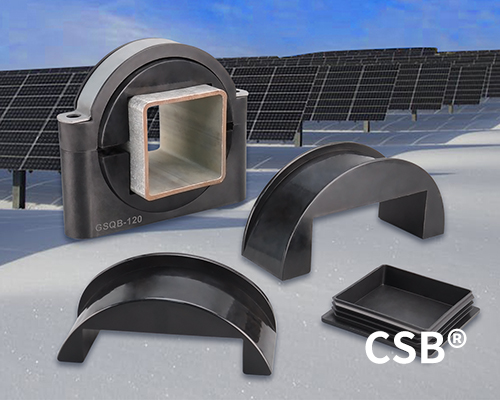

CSB® Solar tracking bracket bearings

Product Features

●Photovoltaic tracking stent plastic bearing
●Light heat tracking stent plastic bearing
●UV resistance
●High and low temperature,Damp-heat aging
●Low friction, wear resistance
●Self lubricating, maintenance-free
●High strength, easy installation


PV Support bracket plugs

●Plastic end caps with pre-load tip design
●UV resistance
●High and low temperature,damp-heat aging
●High strength, easy installation

Benefits in Application

 The specific low wear, low friction behavior of MN527 facilitates smooth function of the bearing and does not need frequent greasing or maintenance that is required with metal bearings. MN527 also offers better tolerances than metal bearings,which results in better alignment of trackers in the field.

Summary of benefits:

 No greasing or maintenance required

 Better tolerance and better alignment of trackers

 High strength for bearing application

 Low friction and quiet smooth function

Mechanical Features:

 High strength and stiffness

 Low wear and low friction

 Elongation and toughness properties

 Dimensional stability

 Very low moisture absorption

Weather ability property

 Test Method:  ISO 4892-3-2016

 Total exposure45Kw.h

 Exposure time4000h
