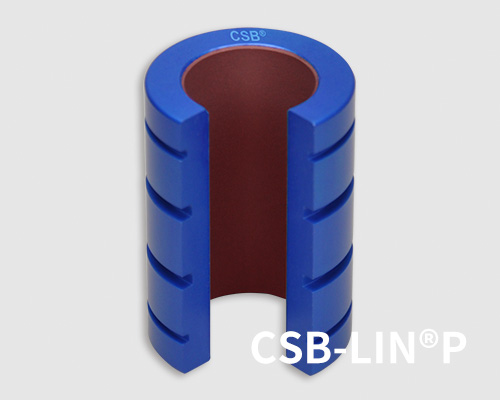

LINPG-11RSK Opening precision linear bearings

Product Features

● Open and self-aligning design

● High precision similar to preloaded ball bearing

● Lower starting friction liner material TEFPLAS^®G

● Anodized aluminum adapter

● Maintenance-free and low noise

● Operation temperature ±200℃

Standard precision

Compensated Clearance

LINPG-11RSK Opening precision linear bearings

Part no.:

d1 F8[mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 h7[mm]：

B h10[mm]：

B1 H10[mm]：

dn H10[mm]：

s H10[mm]：

O H10[mm]：

do h10[mm]：

e [mm]：

ds h10[mm]：

R [mm]：

W [mm]：

a +0.1[mm]：

h [mm]：

h ±0.2[mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊Sliding layer materials TEFPLAS^®

TEFPLAS^® B is a standard sliding layer material. It combines high load bearing and wear resistance performance , suitable for hard shafts ≥HRC35 or hard anodized aluminum shafts.

TEFPLAS^® G has excellent wear resistance, suitable for hard shafts or hard anodized aluminum shafts.

TEFPLAS^® E FDA food contact safety materials, suitable for stainless steel shaft or aluminum shaft.

▊Load capacities of LINPG-11RSK linear bearings

Part No.	Max. dynamic Load [N]			Max. static Load [N]			Weight
Part No.	0°	90°	180°	0°	90°	180°	[g]
LINPG-11RSK-08	1600	1380	500	3200	2760	1000	8
LINPG-11RSK-10	2320	2000	725	4640	4002	1450	11
LINPG-11RSK-12	3072	2649	960	6144	5299	1920	15
LINPG-11RSK-16	4608	3974	1440	9216	7948	2880	21
LINPG-11RSK-20	7200	6210	2250	14400	12420	4500	42
LINPG-11RSK-25	11600	10005	3625	23200	20010	7250	70
LINPG-11RSK-30	16320	14076	5100	32640	28152	10200	132
LINPG-11RSK-40	25600	22080	8000	51200	44160	16000	278
LINPG-11RSK-50	40000	34500	12500	80000	69000	25000	479

Supported shafts

Compact and low high design support;

Standard design support;

3 materials shaft: Hard anodized aluminum shaft, Hardchromed steel shaft, 304 Stainless steel shaft;

Details

Precision shafts

AS: Hard anodized aluminum shaft, the best shaft for LIN linear bearings; CS: Hard-chromed steel shaft, the effective-cost shaft; ES: 304 Stainless steel shaft, the best for chemical liquid; Shaft end processing service...

Details

▊CSB-LIN®P Eccentric forces

●Maximum 2:1 ratio
●1x =bearing separation on same shaft
●2x =distance from shaft to load or force

CSB-LIN® Precision linear bearings

●CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !
This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.
There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.
NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.
If you have any questions on design and/or assembly, please contact our application engineers.

CSB®LINP-11RSK Precision linear bearings, Opening and self-aligning design 2989

Time 09-2021

Type PDF

No. CSB/CAT.062E

Size 472KB

2989

download

CSB-LIN®

Plastic Linear Bearings Finder V2.0

view tools

CSB-LIN® Plastic Linear Bearings Finder V2.0

▊CSB-LIN® Plastic Linear Bearings Finder[V2.0] including LIN plastic linear bearings and LINP precision linear bearings. The system is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations bearing data by entering parameters such as bearing load, speed, temperature and position information, The system will output bearing adaptation data and min. driving force.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-LIN® Plastic Linear Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.
