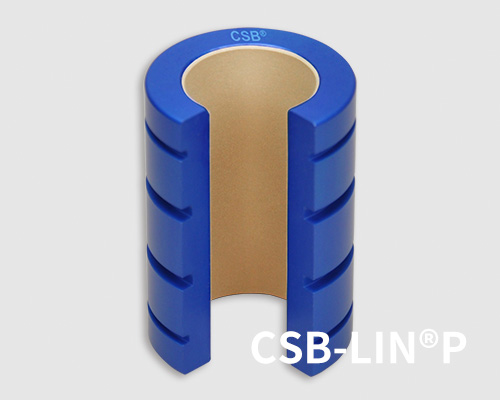

LINPE-11RK Opening precision linear bearings

Product Features

● Open design for supported shafts

● High precision similar to preloaded ball bearing

● FDA grade liner material TEFPLAS^®E

● Anodized aluminum adapter

● Maintenance-free and low noise

● Operation temperature ±200℃

Standard precision

Compensated Clearance

LINPE-11RK Opening precision linear bearings

Part no.:

d1 F8[mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 h7[mm]：

B h10[mm]：

B1 H10[mm]：

dn H10[mm]：

s H10[mm]：

O H10[mm]：

do h10[mm]：

e [mm]：

W [mm]：

a +0.1[mm]：

h [mm]：

h ±0.2[mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊Sliding layer materials TEFPLAS^®

TEFPLAS^® B is a standard sliding layer material. It combines high load bearing and wear resistance performance , suitable for hard shafts ≥HRC35 or hard anodized aluminum shafts.

TEFPLAS^® G has excellent wear resistance, suitable for hard shafts or hard anodized aluminum shafts.

TEFPLAS^® E FDA food contact safety materials, suitable for stainless steel shaft or aluminum shaft.

▊Load capacities of LINPE-11RK linear bearings

Part No.	Max. dynamic Load [N]			Max. static Load [N]			Weight
Part No.	0°	90°	180°	0°	90°	180°	[g]
LINPE-11RK-08	1200	1035	375	2400	2070	750	8
LINPE-11RK-10	1740	1500	543	3480	3001	1087	11
LINPE-11RK-12	2304	1987	720	4608	2974	1440	15
LINPE-11RK-16	3456	2980	1080	6912	5961	2160	21
LINPE-11RK-20	5400	4657	1687	10800	9315	3375	42
LINPE-11RK-25	8700	7503	2718	17400	15007	5437	70
LINPE-11RK-30	12240	10557	3825	24480	21114	7650	132
LINPE-11RK-40	19200	16560	6000	38400	33120	12000	278
LINPE-11RK-50	30000	25875	9375	60000	51750	18750	479

Supported shafts

Compact and low high design support;

Standard design support;

3 materials shaft: Hard anodized aluminum shaft, Hardchromed steel shaft, 304 Stainless steel shaft;

Details

Precision shafts

AS: Hard anodized aluminum shaft, the best shaft for LIN linear bearings; CS: Hard-chromed steel shaft, the effective-cost shaft; ES: 304 Stainless steel shaft, the best for chemical liquid; Shaft end processing service...

Details

▊CSB-LIN®P Eccentric forces

●Maximum 2:1 ratio
●1x =bearing separation on same shaft
●2x =distance from shaft to load or force

CSB-LIN® Precision linear bearings

●CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !
This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.
There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.
NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.
If you have any questions on design and/or assembly, please contact our application engineers.

CSB®LINP-11RK Precision linear bearings, Opening design 4297

Time 09-2021

Type PDF

No. CSB/CAT.062E

Size 471KB

4297

download

CSB-LIN®

Plastic Linear Bearings Finder V2.0

view tools

CSB-LIN® Plastic Linear Bearings Finder V2.0

▊CSB-LIN® Plastic Linear Bearings Finder[V2.0] including LIN plastic linear bearings and LINP precision linear bearings. The system is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations bearing data by entering parameters such as bearing load, speed, temperature and position information, The system will output bearing adaptation data and min. driving force.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-LIN® Plastic Linear Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.
