Product Features

● Opening design
● Assembled liner LIN-11K
● Anodized aluminum adapter
● Axial secured by circlips
● Maintenance-free and low noise
● Resistant to dirt and dust
● Operation temperature -50℃/+90℃

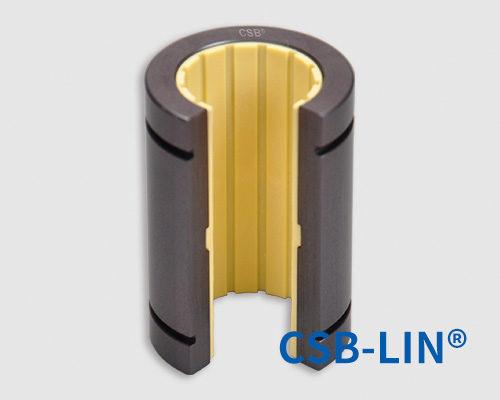

LIN-11RK Plastic linear bearings

Part no.:

d1 [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 h7 [mm]：

B h10[mm]：

B1 H10[mm]：

dn H10[mm]：

s H10[mm]：

W -1[mm]：

a +0.1 [mm]：

h -0.5[mm]：

f ¡À0.2 [mm：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊LIN-11RK Plastic linear bearings load capacity

Part No.	Max. Dynamic Load P=5MPa [N]			Max. Static Load P=35MPa [N]			Weight
Part No.	0°	90°	180°	0°	90°	180°	[g]
LIN-11RK-10	725	500	196	5075	3500	1370	9
LIN-11RK-12	960	635	240	6720	4445	1680	15
LIN-11RK-16	1440	990	396	10080	6943	2772	21
LIN-11RK-20	2250	1800	900	15750	12600	6300	37
LIN-11RK-25	3625	2953	1523	25375	20670	10658	78
LIN-11RK-30	5100	4250	2278	35700	29735	15948	122
LIN-11RK-40	8000	6810	3800	56000	47660	26600	256
LIN-11RK-50	12500	10750	6125	87500	75265	42875	442

Supported shafts

Compact and low high design support;

Standard design support;

3 materials shaft: Hard anodized aluminum shaft, Hardchromed steel shaft, 304 Stainless steel shaft;

Details

▊CSB-LIN® Linear bearing eccentric forces

●Maximum 2:1 ratio
●1x =bearing separation on same shaft
●2x =distance from shaft to load or force

CSB-LIN® Precision linear bearings

●CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !
This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.
There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.
NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.
If you have any questions on design and/or assembly, please contact our application engineers.

CSB®LIN-11RK Plastic linear bearings, Opening design 3110

Time 03-2020

Type PDF

No. CSB/CAT.052

Size 124KB

3110

download

CSB-LIN®

Plastic Linear Bearings Finder V2.0

view tools

CSB-LIN® Plastic Linear Bearings Finder V2.0

▊CSB-LIN® Plastic Linear Bearings Finder[V2.0] including LIN plastic linear bearings and LINP precision linear bearings. The system is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations bearing data by entering parameters such as bearing load, speed, temperature and position information, The system will output bearing adaptation data and min. driving force.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-LIN® Plastic Linear Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.
