Product Features

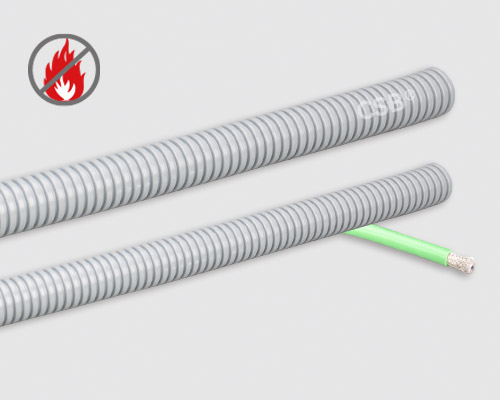

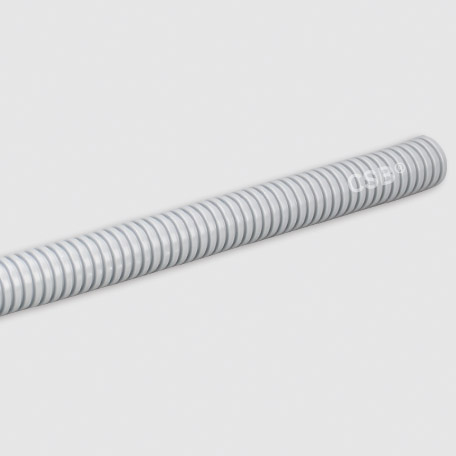

BL02 bellows is suitable for use in general mechanical applications, The good anti-freezing ability and self-extinguishing properties can be used in automotive industries. The bellows keep high impact resistance in cold temperatures and good weather resistance.

● Self-extinguishing class V2
● Made of polyamide with specially modified to withstand freezing temperatures
● Halogen and cadmium free, high impact resistance, even at low temperatures
● Temperature range:-40℃ to +105℃; short-term:+150℃
● Chemical resistance: Against fuels, mineral oils, greases, alkalis, weak acids and bases, etc.

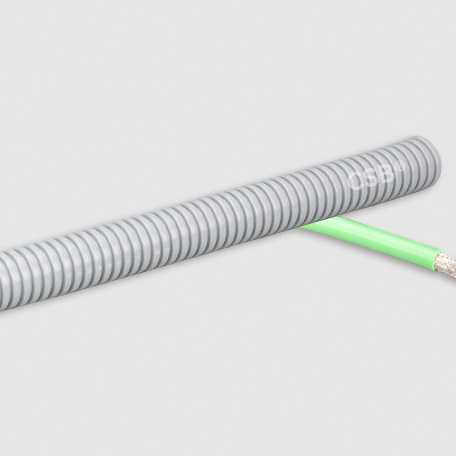

Open

BL02 Bellows

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Bend radius R [mm]：

Max. length [m]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊BL02 Bellows

Part No.(Close)	Part No.(Open)	Max. tension strength [N]	Strain at break [%]	Weight [kg/m]
BL02-10-AD13.0	BL02-10-AD13.0-OP	350	120%	0.023
BL02-12-AD15.8	BL02-12-AD15.8-OP	500	150%	0.033
BL02-14-AD18.5	BL02-14-AD18.5-OP	650	160%	0.042
BL02-17-AD21.2	BL02-17-AD21.2-OP	850	200%	0.054
BL02-20-AD25.0	BL02-20-AD25.0-OP	1000	200%	0.062
BL02-23-AD28.5	BL02-23-AD28.5-OP	1100	200%	0.084
BL02-29-AD34.5	BL02-29-AD34.5-OP	1600	200%	0.104
BL02-36-AD42.5	BL02-36-AD42.5-OP	1800	200%	0.138
BL02-48-AD54.5	BL02-48-AD54.5-OP	2800	200%	0.224
