Product Features

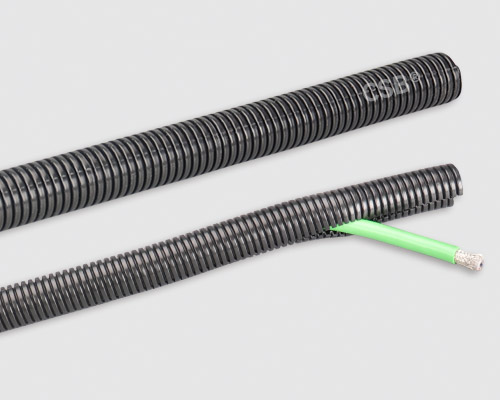

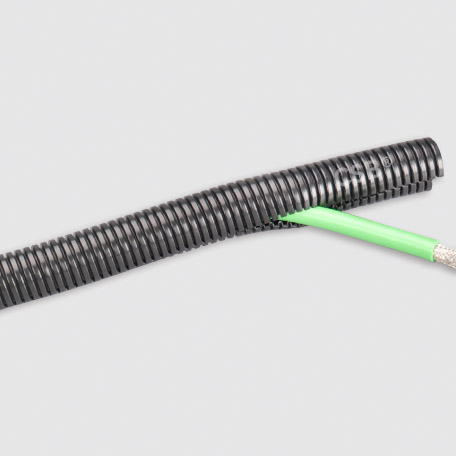

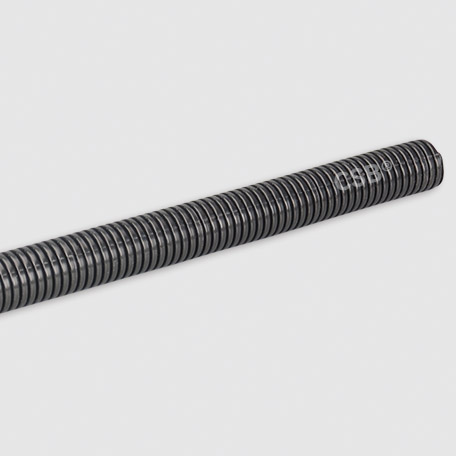

BL01 bellows is suitable for use in general mechanical applications, The bellows keep high impact resistance in cold temperatures and good weather resistance.
● Made of polyamide with specially modified to withstand freezing temperatures
● Halogen and cadmium free, high impact resistance, even at low temperatures
● Temperature range:-40℃ to +105℃; short-term:+150℃
● Chemical resistance: mineral oils, greases, alkalis, weak acids and bases, etc.

Open

BL01 Bellows

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Bend radius R [mm]：

Max. length [m]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊BL01 Bellows

Part No.(Close)	Part No.(Open)	Max. tension strength [N]	Strain at break [%]	Weight [kg/m]
BL01-06-AD10.0	BL01-06-AD10.0-OP	200	120%	0.018
BL01-10-AD13.0	BL01-10-AD13.0-OP	350	120%	0.023
BL01-12-AD15.8	BL01-12-AD15.8-OP	500	150%	0.033
BL01-14-AD18.5	BL01-14-AD18.5-OP	650	160%	0.042
BL01-17-AD21.2	BL01-17-AD21.2-OP	850	200%	0.054
BL01-20-AD25.0	BL01-20-AD25.0-OP	1000	200%	0.062
BL01-23-AD28.5	BL01-23-AD28.5-OP	1100	200%	0.084
BL01-29-AD34.5	BL01-29-AD34.5-OP	1600	200%	0.104
BL01-36-AD42.5	BL01-36-AD42.5-OP	1800	200%	0.138
BL01-48-AD54.5	BL01-48-AD54.5-OP	2800	200%	0.224
