Product Features

● Fitted LIN-11Q square liners

● Maintenance-free, dry-running

● For WQ square guide rails

● Resistant dust and quiet

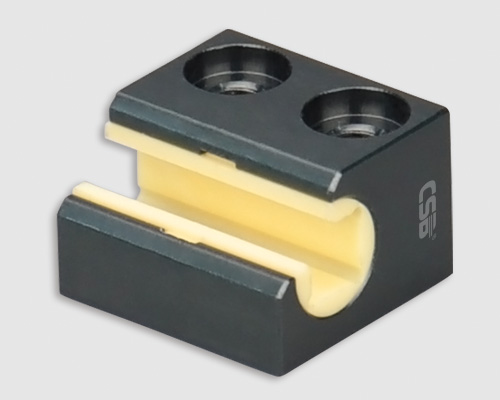

WQU01 Square guide rail blocks

Part no.:

Da [mm]：

Da-max. [mm]：

Da-min. [mm]：

Db [mm]：

Db-max. [mm]：

Db-min. [mm]：

B [mm]：

C1 [mm]：

C3 [mm]：

K2 [mm]：

K3 [mm]：

H ±0.25 [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊WQU01 Square guide rail blocks load capacity

Part No.	Static load			Weight
Part No.	Coy [N]	Coz+ [N]	Coz- [N]	[g]
WQU01-06	420	420	140	8
WQU01-10	1200	1200	250	21
WQU01-16	2100	2100	400	51
WQU01-20	3200	3200	500	104
WQU01-06-FLY	420	420	140	8
WQU01-10-FLY	1200	1200	250	21
WQU01-16-FLY	2100	2100	400	51
WQU01-20-FLY	3200	3200	500	104
WQU01-06-FLZ	420	420	140	8
WQU01-10-FLZ	1200	1200	250	21
WQU01-16-FLZ	2100	2100	400	51
WQU01-20-FLZ	3200	3200	500	104

WQ01 Single square guide rails

● Square single guide rails made of aluminum

● Hard anodized the sliding surface

● Variable width can be fitted

Details

▊Eccentric forces

● Maximum 2:1 ratio

● 1x = bearing separation on same shaft

● 2x = distance from shaft to load or force

CSB-LIN®直线轴承安装法则

● CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !

This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.

There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.

● NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.

● If you have any questions on design and/or assembly, please contact our application engineers.

WQ Suqare linear guide rails 1872

Time 10-2022

Type PDF

No. CSB/CAT.062E

Size 285KB
