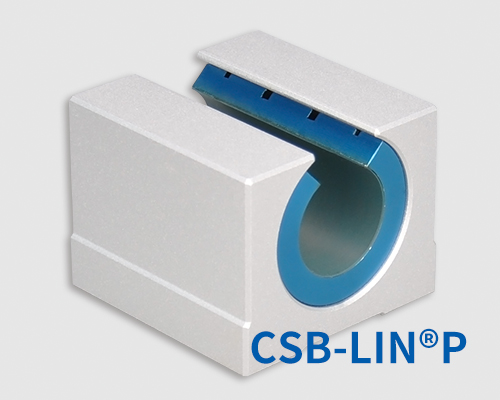

LINPB-11GK Precision linear bearing housings

Product Features

● Open housing design

● High precision similar to preloaded ball bearing

● Standard liner material TEFPLAS^® B

● Anodized aluminum housing

● Secured by bolts

● Maintenance-free and low noise

● Operation temperature ±200℃

Standard precision

Compensated Clearance

LINPB-11GK Precision linear bearing housings

Part no.:

ID F8[mm]：

ID-max. [mm]：

ID-min. [mm]：

W [mm]：

G [mm]：

A [mm]：

M [mm]：

h2 [mm]：

D [mm]：

U [¡ã：

J [mm]：

K [mm]：

S1 [mm]：

S2 [mm]：

Max. shaft [mm]：

Min. shaft [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊Sliding layer materials TEFPLAS^®

TEFPLAS^® B is a standard sliding layer material. It combines high load bearing and wear resistance performance , suitable for hard shafts ≥HRC35 or hard anodized aluminum shafts.

TEFPLAS^® G has excellent wear resistance, suitable for hard shafts or hard anodized aluminum shafts.

TEFPLAS^® E FDA food contact safety materials, suitable for stainless steel shaft or aluminum shaft.

▊Load capacities of LINPB-11GK linear bearings

Part No.	Max. dynamic Load [N]			Max. static Load [N]			Weight
Part No.	0°	90°	180°	0°	90°	180°	[g]
LINPB-11GK-12	3840	3190	960	7680	6381	1920	79
LINPB-11GK-16	5760	4864	1584	11520	9727	3168	125
LINPB-11GK-20	9000	8100	3600	18000	16200	7200	159
LINPB-11GK-25	14500	13154	6090	29000	26309	12180	343
LINPB-11GK-30	20400	18700	9112	40800	37400	18224	450
LINPB-11GK-40	32000	29600	15200	64000	59200	30400	1021
LINPB-11GK-50	50000	46650	25000	100000	93300	50000	1871

Supported shafts

Compact and low high design support;

Standard design support;

3 materials shaft: Hard anodized aluminum shaft, Hardchromed steel shaft, 304 Stainless steel shaft;

Details

Precision shafts

AS: Hard anodized aluminum shaft, the best shaft for LIN linear bearings; CS: Hard-chromed steel shaft, the effective-cost shaft; ES: 304 Stainless steel shaft, the best for chemical liquid; Shaft end processing service...

Details

▊CSB-LIN®P Eccentric forces

●Maximum 2:1 ratio
●1x =bearing separation on same shaft
●2x =distance from shaft to load or force

CSB-LIN® Precision linear bearings

●CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !
This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.
There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.
NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.
If you have any questions on design and/or assembly, please contact our application engineers.
