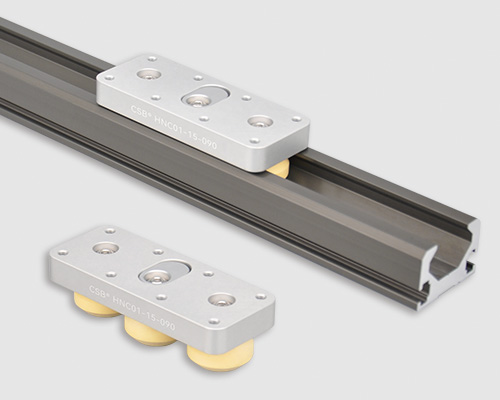

● The installation holes are consistent with the standard ball guide rails
● Made of hard anodized surface of aluminum alloy
● Available longer design by the guide rails connection
● Maintenance-free with HNC roller carragies
● Compact design carriages, self-lubricating and maintenance-free
● Very suitable for high speed applications, the speed up to 10m/s
● Smooth moving, Driving force is about 10% of sliding carriages
● The installation holes are consistent with the standard ball guide rails
● Made of hard anodized surface of aluminum alloy
● Available longer design by the guide rails connection
● Compact design carriages, self-lubricating and maintenance-free
● Very suitable for high speed applications, the speed up to 10m/s
● Smooth moving, Driving force is about 10% of sliding carriages
The rolling friction design of HR linear guide is not limited by the 2:1 rule of sliding guide, but it should be noted that the force on the roller caused by the eccentric force increases exponentially with the leverage effect.
The dimensions are the same as the ball bearing guides；Made of hard anodized surface of aluminum alloy；Lightweight design; Resistant dust; Quiet operation...
Standard anti-wear carriages with clearance adjustment；Very suitable for high speed applications, the speed up to 10m/s；Smooth moving, Driving force is about 10% of sliding carriages...
Aluminum alloy material, Hard anodized surface of sliding; Maintenance-free linear slide guides providing virtually limitless design freedom; Lubrication-free and dirt-resistant...
The coupling connects the drive shaft of the axis to the Motor, An elastic polymer insert in the centre of the coupling transfers the motor torque, This damping element compensates for radial and axial clearance...
Small installation height between 6 and 12 mm;
Lightweight;
Numerous carriage options – also with pretension;
Maintenance-free, self lubricating;
Compact and low high design support;
Standard design support;
3 materials shaft: Hard anodized aluminum shaft, Hardchromed steel shaft, 304 Stainless steel shaft;
AS: Hard anodized aluminum shaft, the best shaft for LIN linear bearings; CS: Hard-chromed steel shaft, the effective-cost shaft; ES: 304 Stainless steel shaft, the best for chemical liquid; Shaft end processing service...
