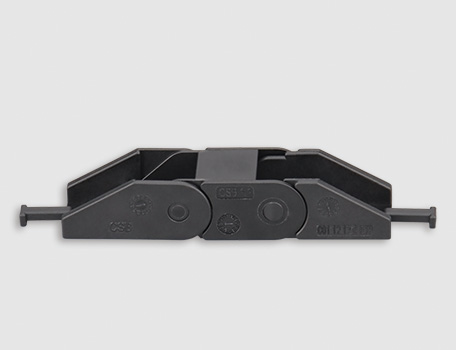

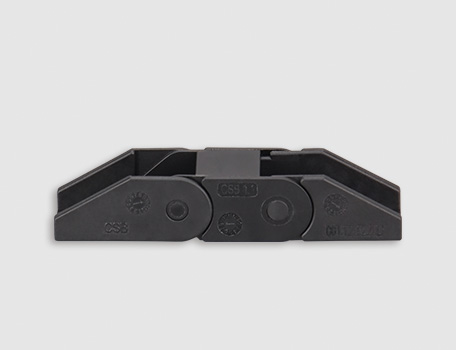

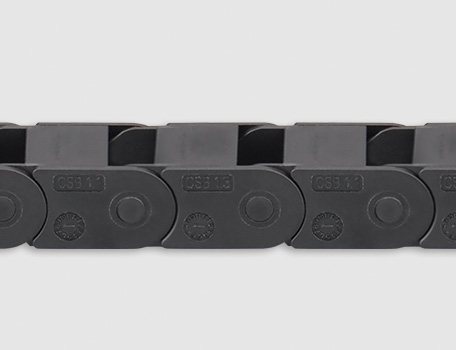

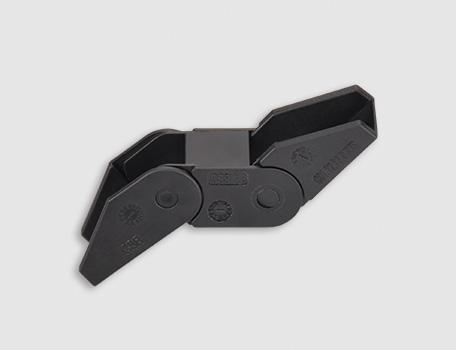

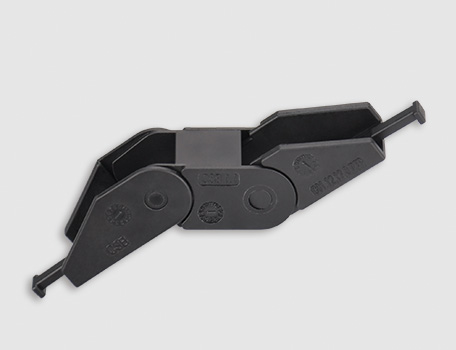

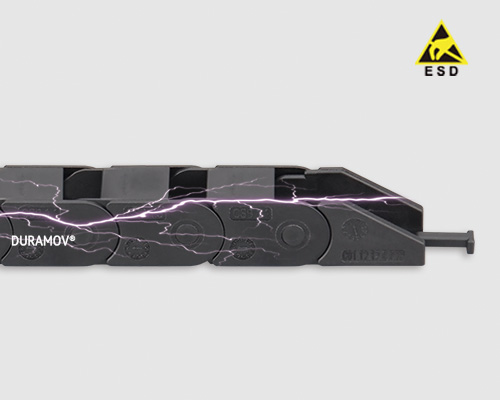

C01E.12 ESD micro cable carriers

Product Features

C01E.12 ESD micro cable carriers are very small, one piece chains with low weight, making them ideal for highly dynamic applications. C01E.12 ESD micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.

● Electro-Static discharge，Surface resistance <109Ω

● Long-term application temperature：-40/+120℃

● Inner height：12 mm
● Inner width：10-12 mm
● Bend radius：18-38 mm
● Link pitch：20 mm

C01E.12 ESD micro cable carriers
Part no.:
Inner width Bi [mm]：
Outer width Ba [mm]：
Inner height Hi [mm]：
Outer height Ha [mm]：
Link pitch T [mm]：
Bend radius R [mm]：
Nominal clearance height [mm]：
Final position D[mm]：
Add-on for R K[mm]：
Max. unsupported L[m]：
*Lead time [wks]：
Inner width Bi [mm]：
Outer width Ba [mm]：
Inner height Hi [mm]：
Outer height Ha [mm]：
Link pitch T [mm]：
Bend radius R [mm]：
Nominal clearance height [mm]：
Final position D [mm]：
Add-on for R K [mm]：
Max. unsupported L [m]：
*Lead time [wks]：
Fixed end：
Moving end：
Inner width Bi [mm]：
A [mm]：
X [mm]：
M [mm]：
*Lead time [wks]：
Fixed end：
Moving end：
Inner width Bi [mm]：
A [mm]：
X [mm]：
M [mm]：
*Lead time [wks]：
Fixed end：
Moving end：
Inner width Bi [mm]：
A [mm]：
X [mm]：
M [mm]：
C [mm]：
Number of teeth [pcs]：
*Lead time [wks]：
Fixed end：
Moving end：
Inner width Bi [mm]：
A [mm]：
X [mm]：
M [mm]：
C [mm]：
Number of teeth [pcs]：
*Lead time [wks]：
Fixed end：
Moving end：
Inner width Bi [mm]：
A [mm]：
X [mm]：
*Lead time [wks]：
Fixed end：
Moving end：
Inner width Bi [mm]：
A [mm]：
X [mm]：
*Lead time [wks]：
Inner width Bi [mm]：
Outer width Ba [mm]：
Inner height Hi [mm]：
Outer height Ha [mm]：
Link pitch T [mm]：
Bend radius R [mm]：
Nominal clearance height H [mm]：
Final position D [mm]：
Add-on for R K [mm]：
Max. unsupported L [m]：
*Lead time [wks]：
Fixed end：
Moving end：
Inner width Bi [mm]：
A [mm]：
X [mm]：
Number of teeth [pcs]：
*Lead time [wks]：
Fixed end：
Moving end：
Inner width Bi [mm]：
A [mm]：
X [mm]：
Number of teeth [pcs]：
*Lead time [wks]：
Download CAD
Cart
Shooping
Dimensions

▊Installation dimensions


Unsupported length

≤ 0.75m


Speed / acceleration FLG

≤ 3 [m/s] / 8 [m/s² ]

Sliding length

Inapplicable

Speed / acceleration FLB

≤ 2 [m/s] / 4 [m/s² ]

Vertical hanging

≤ 5m

Sliding speed / acceleration

Inapplicable

Vertical standing

≤ 0.5m

Permitted temperature

-40℃ ~120℃

Side-unsupported length

≤ 0.5m

Flammability Class

UL94 HB

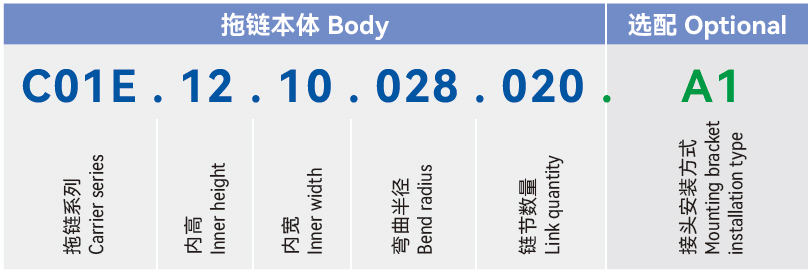

▊Order code for pre-assembled cable carriers


▊ Installation

CSB Micro cable chains installation

  Twist and click                                                                                     Twist and divide

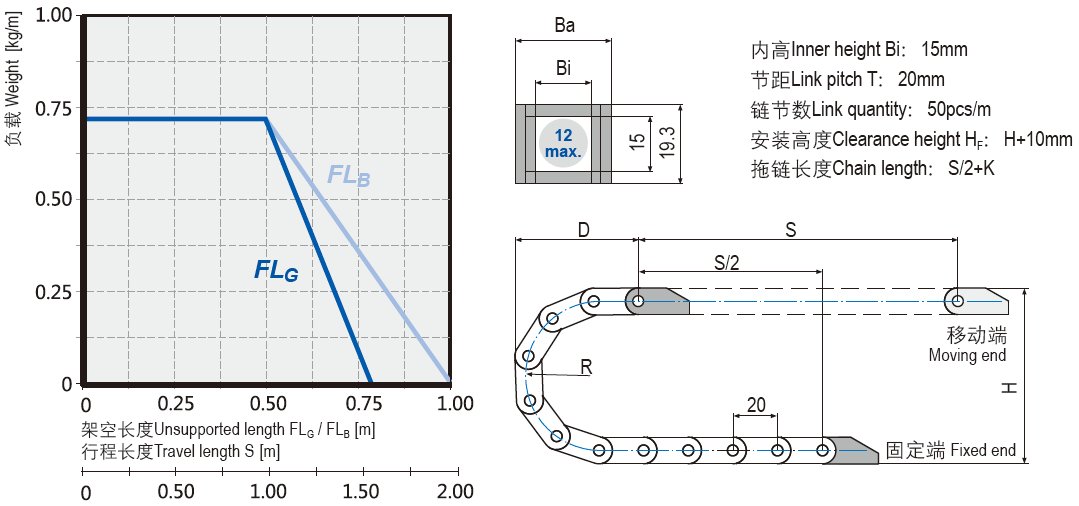

▊Installation dimensions

ESD micro cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R025028038048
H697595115
D65687888
K120130160195

*The required clearance height：HF=H+15mm（Fill weight 0.3kg/m)

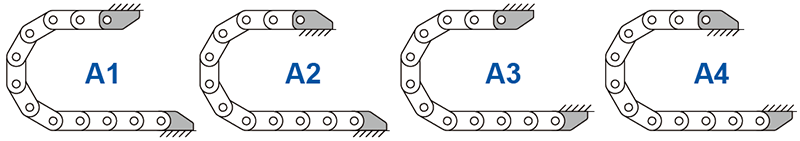

▊Mounting bracket installation optional

ESD micro cable chains mounting bracket installation optional

*C01E.15 Possible installation configurations
*A1|A2|A3|A4 Please indicate installation code for pre-assembled chains

▊C01E.15.Bi.01.P

ESD micro cable chains special optional

*For unsupported and gliding applications
