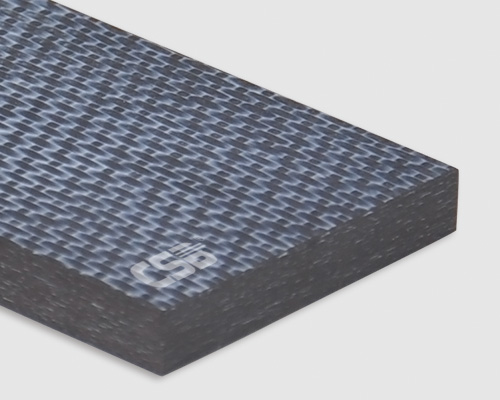

DURARUB®50 Sliding plates

Product Features

● For dry, oil, grease or underwater applications
● Fluorine and silicon free
● Excellent dimensional stability
● High load capability
● Good chemical resistance
● Sliding layer machined available
● Continuous working temperature: -100/+250℃

Material properties	Standard	Unit	DR50
Density	ISO1183	g/cm³	1.56
Max. water absorption	ISO62	%	0.1
Max. PV value	ITS026	N/mm²×m/s	1.5
Coefficient of friction	ITS025	µ	0.10-0.25
Long-term application temperature	ITS029	℃	+250
Short-term application temperature	ITS029	℃	+310
Lowest application temperature	ITS029	℃	-100
Max. Speed	ITS032	m/s	1.0
Compressive strength	ITS033	MPa	550
Max. static load	ITS027	MPa	550
Max. dynamic load	ITS028	MPa	225
Coefficient of thermal expansion	ISO11359	10^-6×K^-1	15
Mating part hardness	-	HB	≥480
Mating part surface finish	-	Ra	0.2-0.8

DURARUB®50 Sliding plates

Part no.:

T ±0.15 Thickness [mm]：

W Max. width [mm]：

L Max. length [mm]：

*Lead time [wks]：

Download CAD

Dimensions

▊Material structure

DR50 sliding plates consists only of a sliding layer, combining the excellent load performance and high strength of a low-friction sliding layer.

The sliding layer consists of a special carbon fiber fabric filled with PEEK resin, designed to ensure good mechanical and tribological properties.

▊Installation with M8 countersunk screws
