Product Features

● For dry applications
● Excellent dimensional stability
● Low friction coefficient
● Good chemical resistance
● Continuous working temperature 160℃

Material properties	Standard	Unit	DR30
Density	ISO1183	g/cm³	1.30
Max. water absorption	ISO62	%	0.1
Max. PV value	ITS026	N/mm²×m/s	1.2
Coefficient of friction	ITS025	µ	0.05-0.20
Long-term application temperature	ITS029	℃	+160
Short-term application temperature	ITS029	℃	+200
Lowest application temperature	ITS029	℃	-60
Max. Speed	ITS032	m/s	0.15
Compressive strength	ITS033	MPa	150
Max. static load	ITS027	MPa	150
Max. dynamic load	ITS028	MPa	75
Coefficient of thermal expansion	ISO11359	10^-6×K^-1	50
Mating part hardness	-	HB	≥180
Mating part surface finish	-	Ra	0.2-0.8

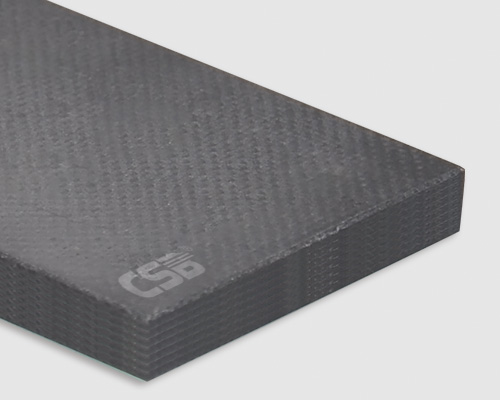

DURARUB®30 Sliding plates

Part no.:

S1 ±0.15 [mm]：

W Max. width [mm]：

L Max. length [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊Material structure

DR30 sliding plates only consist of one layer, combining the excellent bearing properties of low-friction sliding layer with the lowfriction coefficient materials.

The sliding layer is composed of high-strength fibers, solid lubricants, and an epoxy resin matrix, designed to ensure the pad's outstanding friction characteristics.
