Product Features

● For dry applications
● Available hardened surface aluminum shafts
● Low starting friction force
● Good chemical resistance
● Continuous working temperature: -60/+120℃

Material properties	Standard	Unit	DR21
Density	ISO1183	g/cm³	1.90
Max. water absorption	ISO62	%	0.1
Max. PV value	ITS026	N/mm²×m/s	0.7
Coefficient of friction	ITS025	µ	0.10-0.25
Long-term application temperature	ITS029	℃	+120
Short-term application temperature	ITS029	℃	+160
Lowest application temperature	ITS029	℃	-60
Max. Speed	ITS032	m/s	0.50
Compressive strength	ITS033	MPa	200
Max. static load	ITS027	MPa	20
Max. dynamic load	ITS028	MPa	10
Coefficient of thermal expansion	ISO11359	10^-6×K^-1	13
Mating part hardness	-	HB	≥120
Mating part surface finish	-	Ra	0.2-0.8

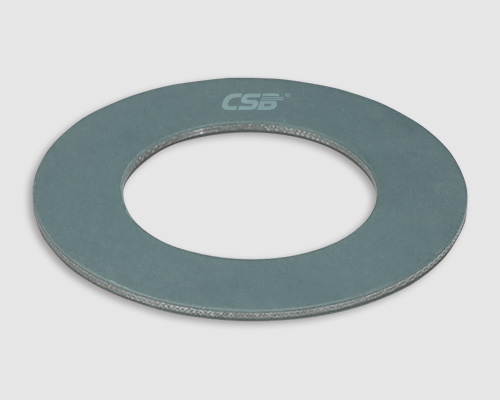

DURARUB®22 Sliding washers

Part no.:

T ±0.15 [mm]：

d1 [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 [mm]：

d2-max. [mm]：

d2-min. [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊Material structure

DR22 sliding washers consist of three layers combining the excellent bearing properties of low-friction sliding layer with the high strength of a load carrying glass-fibre filled core layer.

The silding layer consists of an fluoroplastic filled with solid lubricants, designed to ensure good tribological properties and lower starting friction force.
