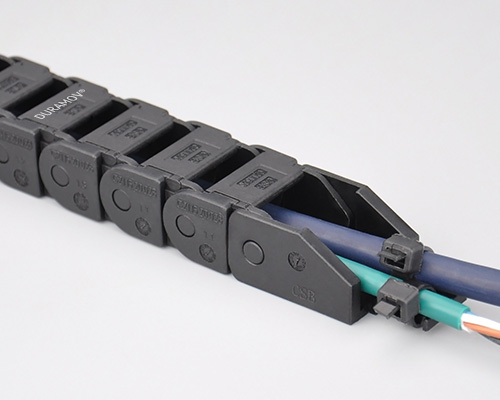

Product Features

C21 micro cable carriers are openable along the outer radius, two pieces and small design chains with low weight, making them ideal for highly dynamic applications and cables fﬁ lled quickly. C21 micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.

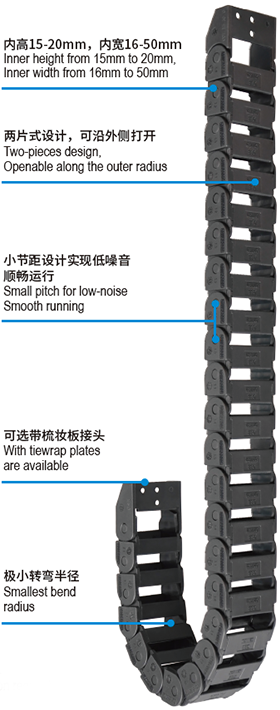

● Small pitch for low-noise, smooth running

● Two-pieces design, openable along the outer radius

● Openable design and cable filled quickly

● Very lightweight, low price smallest inner heights and bend radius

Electrically conductive ESD/ATEX version C21E upon request

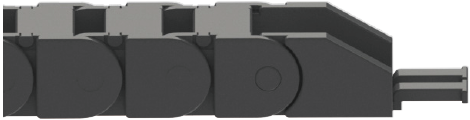

C21.15 Openable micro cable carriers

● Inner height：15 mm

● Inner width：16-40 mm
● Bend radius：28-48 mm
● Link pitch：20 mm

Details

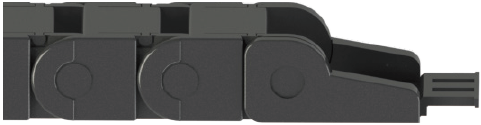

C21.20 Openable micro cable carriers

● Inner height：20 mm

● Inner width：25-50 mm
● Bend radius：28-48 mm
● Link pitch：30.5 mm

Details

▊ Product introduction

C21 micro cable carriers are openable along the outer

radius, two pieces and small design chains with

low weight, making them ideal for highly dynamic

applications and cables ffilled quickly. C21 micro cable

carriers are optimal for the smallest installation spaces,

and are available in many versions.

Openable micro cable chains openable along the outer radius Openable along the outer radius

Openable micro cable chains flammability Class Flammability Class UL94 HB

Openable micro cable chains CE certification CE certification

Openable micro cable chains RoHS certification RoHS certification

Openable micro cable chains low-noise Low-noise

Electrically conductive ESD/ATEX version C21E upon request

▊ Standard dimensions

Micro cable carriers,

openable along the outer radius

Part No.

Inner width

Bi

[mm]

Outer width

Ba

[mm]

Inner height

Hi

[mm]

Outer height

Ha

[mm]

Bend radius

R

[mm]

Unsupported

length

[m]

C21.15

16-40

24.2-48.2

14.3

19.3

28-48

≤0.7

C21.20

25-50

36-61

20

25

28-48

≤0.7

DURAMOV® Cable Chain Test Video

CSB conducts approximately 10 million DURAMOV® cable chain endurance tests at 68 laboratory stations and more than 30 application stations every year. The cable chain test laboratory includes different installation and application tests: short-stroke unsupported installation, vertical hanging, vertical standing, side-mounted and long-stroke sliding tests in outdoor natural climates; The cable chain application station tests include: Application tests of C02 cable chains on machining centers, Application tests of C02 and C06 cable chains on grabbing manipulators or robots, Application tests of C03 cable chains on long-stroke manipulators, Application tests of micro cable chains such as C01 and C31 on high-frequency motion devices...

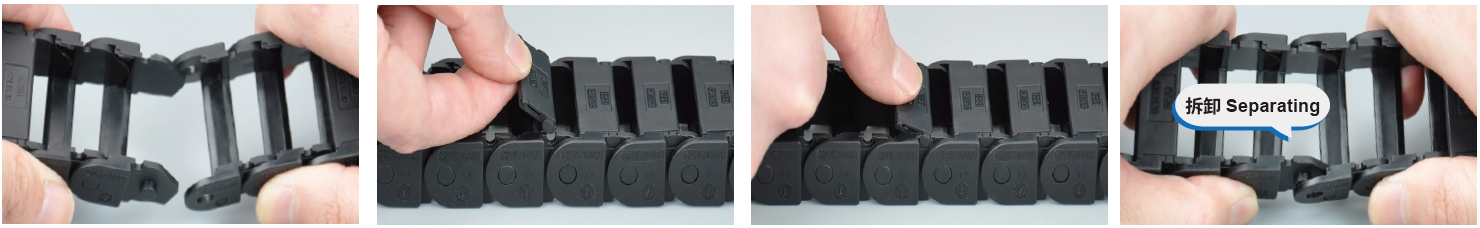

▊ Installation

Push and click Position and... Press and click Release links

▊ Distribution rules | Cables and hoses

In order to ensure that the chain is functioning properly and to avoid damage to the cables or hoses, the following principles must be observed when laying cables or hoses:

	▊ This minimum clearance would be 10% for electrical round cables, 20% for hydraulic hoses.
	▊ In order to reduce the possible friction, avoid pipes with different skin materials such as cables or hoses.（eg: cable and hydraulic hoses）
	▊ In applications where multiple cables and hoses are used, in order to avoid mutual friction between them, it is preferable to place them in a suitable separate space and separate them from each other with a spacer. If there are no conditions to achieve, make sure there is enough space between them to avoid mutual friction (H<D).
	▊ The cables or hoses are laid in a symmetrical manner according to their diameter and weight. The largest and heaviest cables are placed on the outside of the section and the small and light cables are placed on the inside.

▊ Typical Applicable Industries and Applications

● General machinery

● Handling machines

● Semi-conductor machines

● Measuring equipment

● Pick & place robots

● Medical industries

● Packaging machines

● Textile machines

C21 Openable micro cable chains 1481

Time 10-2023

Type PDF

No. CSB/CAT.064

Size 505KB
