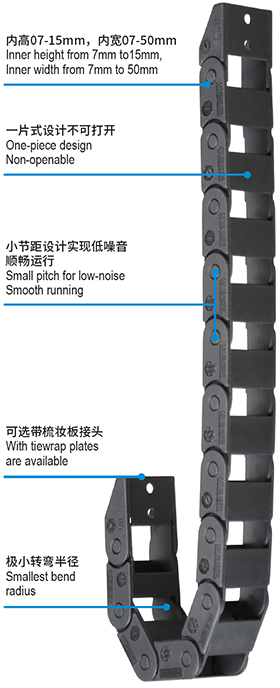

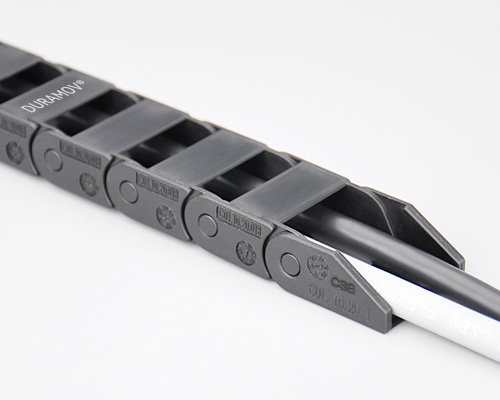

C01 micro cable carriers are very small, one piece chains with low weight, making them ideal for highly dynamic applications. C01 micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.

● Small pitch for low-noise, smooth running

● One-piece design, non-openable

● Very lightweight, low price smallest inner heights and bend radius

Electrically conductive ESD/ATEX version C01E upon request

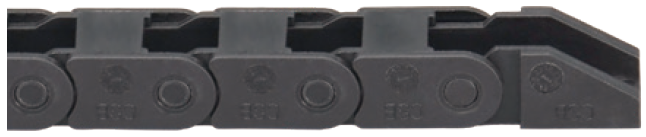

C01.07 Micro cable carriers

● Inner height：7 mm
● Inner width：7-30 mm
● Bend radius：15-48 mm
● Link pitch：16.7 mm

Details

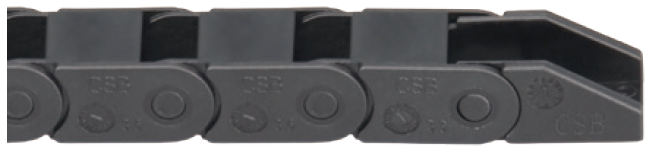

C01.10 Micro cable carriers

● Inner height ：10 mm
● Inner width：10-30 mm
● Bend radius：18-38 mm
● Link pitch：20 mm

Details

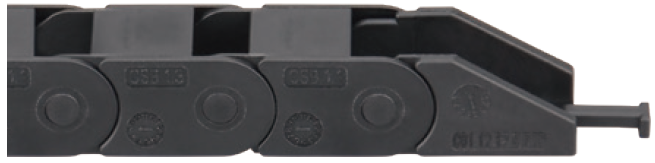

C01.12 Micro cable carriers

● Inner height：12 mm

● Inner width：10-12 mm
● Bend radius：18-38 mm
● Link pitch：20 mm

Details

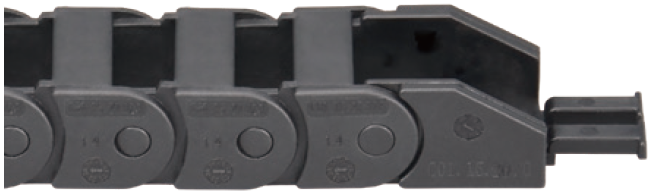

C01.15 Micro cable carriers

● Inner height：15 mm

● Inner width：16-50 mm
● Bend radius：25-48 mm
● Link pitch：20 mm

Details

▊ Product introduction

C01 micro cable carriers are very small, one piece chains C01 Micro cable chains

with low weight, making them ideal for highly dynamic

applications. C01 micro cable carriers are optimal for the

smallest installation spaces, and are available in many

versions.

Micro cable chains One-piece design，non-openable One-piece design，non-openable

Micro cable chains flammability Class Flammability Class UL94 HB

Micro cable chains CE certification CE certification

Micro cable chains RoHS certification RoHS certification

Micro cable chains low-noise Low-noise

Electrically conductive ESD/ATEX version C01E upon request

▊ Standard dimensions

Micro cable carriers	Part No.	Inner width Bi [mm]	Outer width Ba [mm]	Inner height Hi [mm]	Outer height Ha [mm]	Bend radius R [mm]	Unsupported length [m]
	C01.07	7-30	12-35	7	10	15-48	≤0.5
	C01.10	10-30	14-34	10	12	18-38	≤0.5
	C01.12	10-12	14-16	12	14	18-38	≤0.75
	C01.15	16-50	24.2-58.2	15	19.3	25-48	≤1.0

DURAMOV® Cable Chain Test Video

CSB conducts approximately 10 million DURAMOV® cable chain endurance tests at 68 laboratory stations and more than 30 application stations every year. The cable chain test laboratory includes different installation and application tests: short-stroke unsupported installation, vertical hanging, vertical standing, side-mounted and long-stroke sliding tests in outdoor natural climates; The cable chain application station tests include: Application tests of C02 cable chains on machining centers, Application tests of C02 and C06 cable chains on grabbing manipulators or robots, Application tests of C03 cable chains on long-stroke manipulators, Application tests of micro cable chains such as C01 and C31 on high-frequency motion devices...

▊ Installation

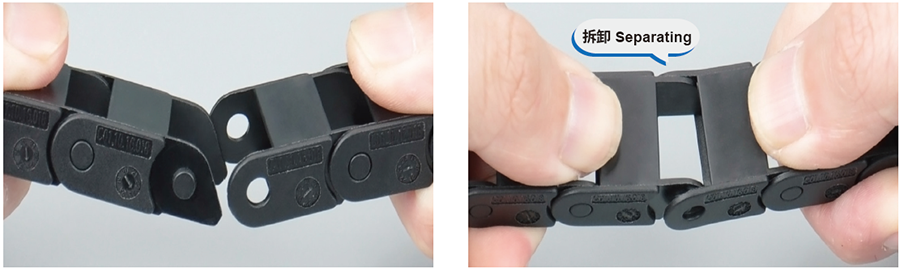

Twist and click Twist and divide
