Product Features

● Fitted LIN-11Q square liners

● Maintenance-free, dry-running

● Mono-design and low cost

● For WQ double square guide rails

● Resistant dust and quiet

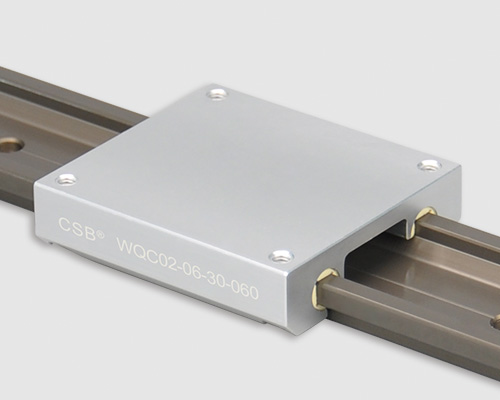

WQC02 Suqare guide rail carriages

Part no.:

L [mm]：

C [mm]：

A [mm]：

A1 [mm]：

H [mm]：

K [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊WQC02 Suqare guide rail carriages load capacity

Part No.	Static load					Weight
Part No.	Coy- [N]	Coz [N]	Mox [Nm]	Moy [Nm]	Moz [Nm]	[kg]
WQC02-06-30-060	1680	840	25	34	34	0.07
WQC02-06-30-080	1680	840	25	51	51	0.09
WQC02-06-30-100	1680	840	25	68	68	0.12
WQC02-10-40-100	4800	2400	96	170	170	0.21
WQC02-10-40-150	4800	2400	96	290	290	0.32
WQC02-10-40-200	4800	2400	96	410	410	0.42
WQC02-16-60-100	8400	4200	240	270	270	0.41
WQC02-16-60-150	8400	4200	240	480	480	0.61
WQC02-16-60-200	8400	4200	240	690	690	0.80
WQC02-20-80-150	12800	6400	525	670	670	0.99
WQC02-20-80-200	12800	6400	525	990	990	1.33
WQC02-20-80-250	12800	6400	525	1250	1250	1.66

No products

▊Eccentric forces

● Maximum 2:1 ratio

● 1x = bearing separation on same shaft

● 2x = distance from shaft to load or force

CSB-LIN®直线轴承安装法则

● CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !

This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.

There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.

● NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.

● If you have any questions on design and/or assembly, please contact our application engineers.

WQ Suqare linear guide rails 1872

Time 10-2022

Type PDF

No. CSB/CAT.062E

Size 285KB

1872

download

CSB-LIN®

Plastic Linear Bearings Finder V2.0

view tools

CSB-LIN® Plastic Linear Bearings Finder V2.0

▊CSB-LIN® Plastic Linear Bearings Finder[V2.0] including LIN plastic linear bearings and LINP precision linear bearings. The system is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations bearing data by entering parameters such as bearing load, speed, temperature and position information, The system will output bearing adaptation data and min. driving force.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-LIN® Plastic Linear Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.
