Polymer-tech SolutionsTM
● Fitted standard liners EPB13
● Maintenance-free, dry-running
● With individual clearance adjustment

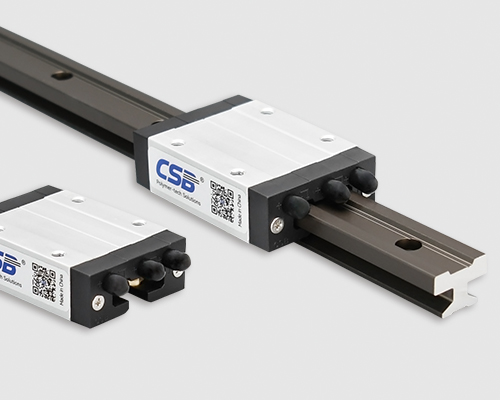

● For TR02 linear guide rails
● Optional floating bearing version in Y or Z direction
Part No. | Static load | Weight | ||||
Coy± [N] | Coz± [N] | Mox [Nm] | Moy [Nm] | Moz [Nm] | [kg] | |
TRC02-15 | 4000 | 2000 | 32 | 25 | 25 | 0.11 |
| TRC02-15-FLY | 4000 | 2000 | 32 | 25 | 25 | 0.11 |
| TRC02-15-FLZ | 4000 | 2000 | 32 | 25 | 25 | 0.11 |
*TRC02-15 Series Manual Gap Adjustment Standard Slide, Max Gap 0.3mm in Y and Z Directions
● Made of hard anodized surface of aluminum alloy
● Maintenance-free with TRC02 roller carragies
● Lightweight design
● Maximum 2:1 ratio
● 1x = bearing separation on same shaft
● 2x = distance from shaft to load or force
● CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !
This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.
There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.
● NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.
● Sliding layer material: TEFPLAS® B
● Operation temperature ±200℃
● Max. continuous running speed 1.5m/s
● Maintenance-free, dry-running
● Fitted standard liners EPB13
● Maintenance-free, dry-running
● Fast assembly and light weight
● For TR linear guide rails
● Small installation width from 09 to 12 mm
● The dimensions are the same as the ball bearing guides
● Made of hard anodized surface of aluminum alloy
● Maintenance-free with TRC roller carragies
