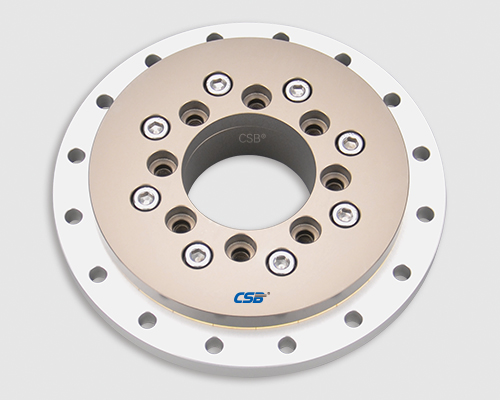

SRB-03 Slewing ring bearings

Product Features

● Completely maintenance-free

● Standard sliding pads made from EPB13

● Easy to install with replaceable sliding pads

● Inner and outer rings made of anodized aluminum

● For very high load applications

● Operation temperature -40℃/+90℃

Item		Unit	SRB-03 -20	SRB-03 -30	SRB-03 -50	SRB-03 -60	SRB-03 -100	SRB-03 -150	SRB-03 -200
Weight		kg	0.2	0.4	1.0	1.1	1.3	2.2	3.2
Max. Rotation Speed		r/min	300	250	200	180	150	100	80
Max. Static Load	Axial	N	15000	27000	40000	50000	55000	80000	100000
Max. Static Load	Radial	N	2300	5000	8000	10000	16000	25000	45000
Max. Dynamic Load	Axial	N	4000	7000	10000	15000	16000	25000	30000
Max. Dynamic Load	Radial	N	600	1500	2500	3000	5000	8000	10000
Max. Permitted Overturning		Nm	100	200	600	800	1500	2000	3800

SRB-03 Slewing ring bearings

Part no.:

d [mm]：

d1 [mm]：

d2 ±0.2 [mm]：

D [mm]：

D1 [mm]：

H [mm]：

h [mm]：

T1 [mm]*[°]：

T2 [mm]*[°]：

S1 [mm]：

S2 [mm]：

*Lead time [wks]：

Download CAD

Dimensions
