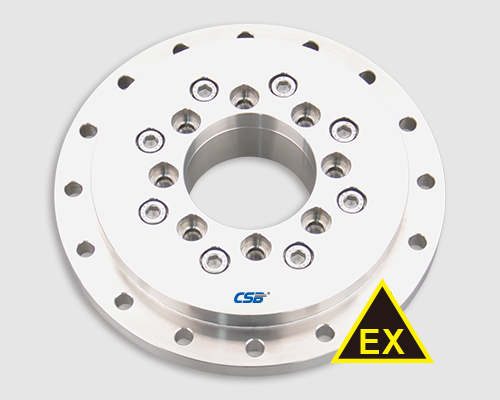

SRB-01-ESD Slewing ring bearings

Product Features

● For high speed applications

● Smooth operation and noise-free

● Standard sliding pads made from ESD material TEFPLAS® C

● Inner and outer rings made of stainless steel rings

● Self-lubricating, maintenance-free

● Cleanroom applications possible

● Operation temperature ±200℃

Item		Unit	SRB-01-20-ESD	SRB-01-30-ESD	SRB-01-50-ESD	SRB-01-60-ESD
Weight		kg	0.2	0.4	1.0	1.1
Max. Rotation Speed		r/min	600	400	300	270
Max. Static Load	Axial	N	9500	16000	25000	31000
Max. Static Load	Radial	N	2600	4100	5900	8900
Max. Dynamic Load	Axial	N	2500	4300	6200	9400
Max. Dynamic Load	Radial	N	390	890	1480	1780
Max. Permitted Overturning		Nm	60	120	370	500

***For operation under extreme temperature, Please contact us.

SRB-01-ESD Slewing ring bearings

Part no.:

d [mm]：

d1 [mm]：

d2 ±0.2 [mm]：

D [mm]：

D1 [mm]：

H [mm]：

h [mm]：

T1 [mm]*[°]：

T2 [mm]*[°]：

S1 [mm]：

S2 [mm]：

*Lead time [wks]：

Download CAD

Dimensions

CSB-SRB®SRB01 Slewing ring bearings, high speed

CSB-SRB®SRB01 Slewing ring bearings, high speed 3610

Time 11-2023

Type PDF

No. CSB/CAT.062

Size 166KB

3610

download
