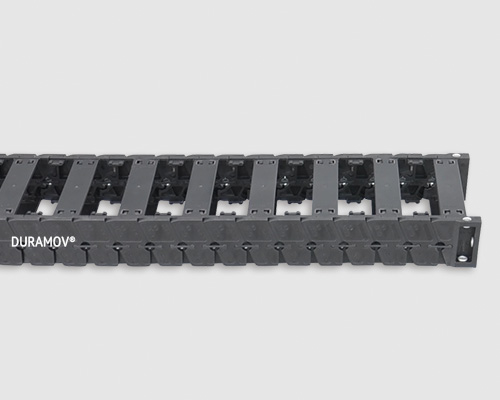

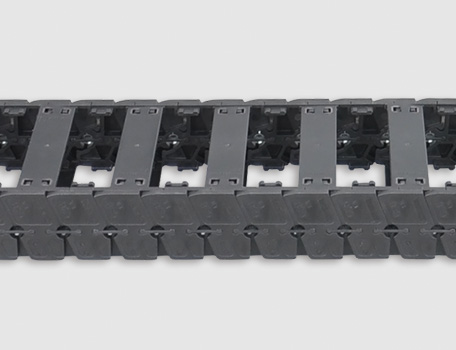

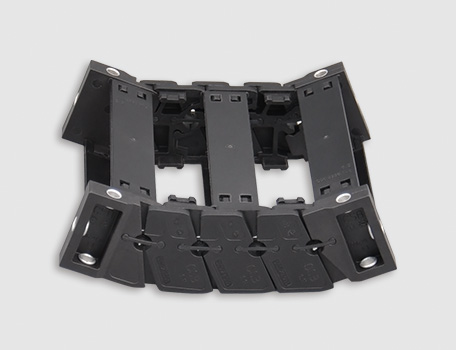

C06.29 quiet cable carriers with a special structural design and long service life; because the cable carriers with an arc shape design in the outside and the short-pitch chain links are connected with elastic elements, the vibration during the bending to linear motion of the cable carriers is reduced, and it is suitable for low noise, high speed and clean room applications.
● Long-term application temperature：-40/+120℃
● Inner height：29 mm
● Inner width：40-120 mm
● Bend radius：55-150 mm
● Link pitch：22 mm

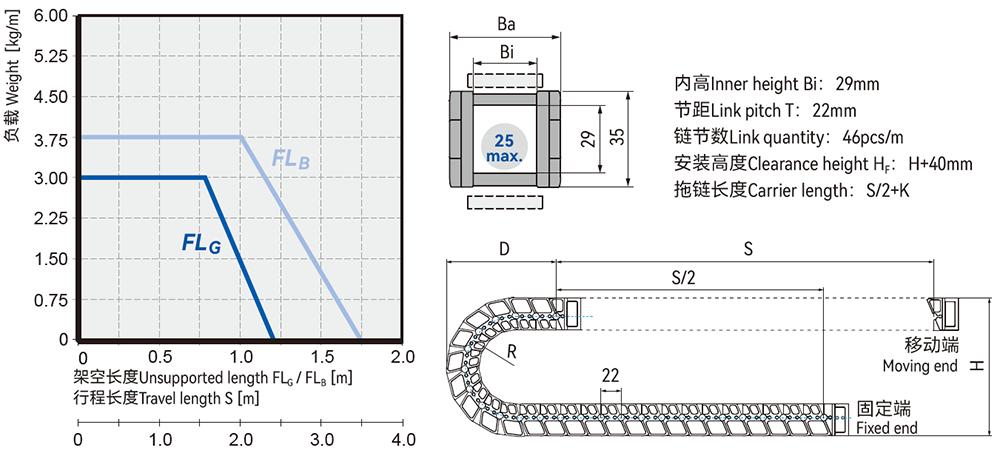

 | Unsupported length | ≤ 1.75m | Speed / acceleration FLG | ≤ 20 [m/s] / 200 [m/s² ] | |
Sliding length | Upon request | Speed / acceleration FLB | ≤ 3 [m/s] / 6 [m/s² ] | ||
Vertical hanging | ≤ 30m | Sliding speed / acceleration | Upon request | ||
Vertical standing | ≤ 2.0m | Permitted temperature | -40℃ ~120℃ | ||
Side-unsupported length | Upon request | Flammability Class | UL94 HB |

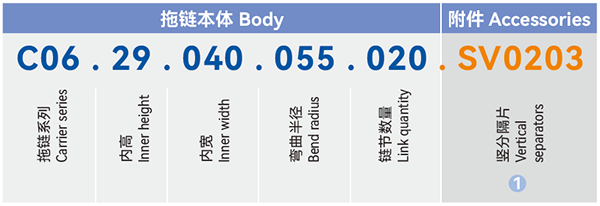

① SV0203: Install 3pcs vertical separators every other 2pcs blank links
*Please consult CSB® if space is particularly restricted.
| R | 055 | 075 | 100 | 150 |
| H | 180 | 220 | 270 | 370 |
| D | 108 | 128 | 153 | 203 |
| K | 220 | 280 | 360 | 520 |
*The required clearance height：HF=H+40mm （Fill weight 0.3kg/m)

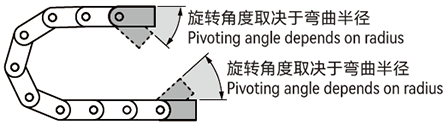

*C06.29Possible installation configurations
*A1 Please indicate installation code for pre-assembled carriers
*For unsupported and gliding applications
▊DURAMOV® Cable Chain Finder[V1.1] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations filler and installation data by entering parameters such as cables, gas tubes, oil tubes and installation data, The system will analyze your design data and finally output the adaptation cable chains.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the cable chains must be tested again to verify whether it meets the actual use requirements.
▊DURAMOV® Cable Chain Finder output data information is only for design reference, and can not be used as the final standard for determining the cable chains conformity, If you have any questions, please contact CSB® sales engineers.
