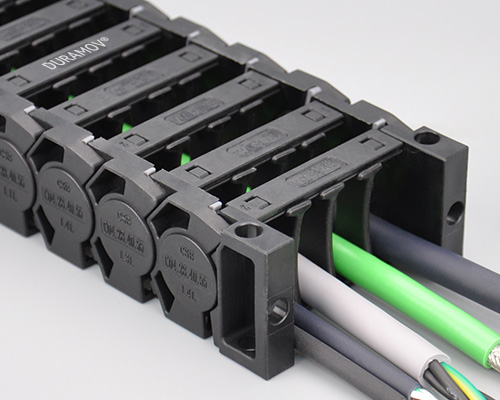

C04.28 quiet cable carriers are very light and cleanroom suitable, the special elastic structure design for rotation connection dliminates the impact noise in the movement, making them ideal for highly dynamic and cleanroom applications.
● Long-term application temperature：-40/+120℃
● Inner height：28 mm
● Inner width：30-60 mm
● Bend radius：55-150 mm
● Link pitch：22 mm
 | Unsupported length | ≤ 1.0m | Speed / acceleration FLG | ≤ 3 [m/s] / 8 [m/s² ] | |
Sliding length | Inapplicable | Speed / acceleration FLB | ≤ 2 [m/s] / 4 [m/s² ] | ||
Vertical hanging | ≤ 5m | Sliding speed / acceleration | Inapplicable | ||
Vertical standing | ≤ 0.5m | Permitted temperature | -40℃ ~120℃ | ||
Side-unsupported length | ≤ 0.5m | Flammability Class | UL94 HB |

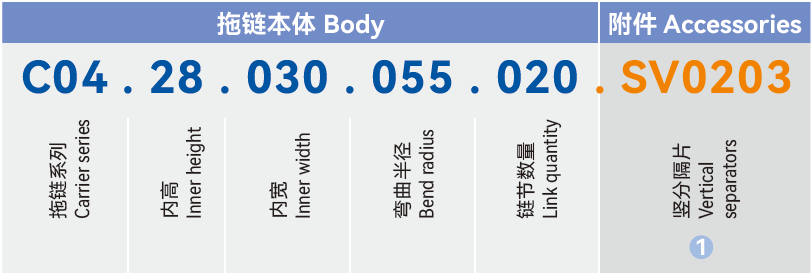

① SV0203: Install 3pcs vertical separators every other 2pcs blank links
*Please consult CSB® if space is particularly restricted.

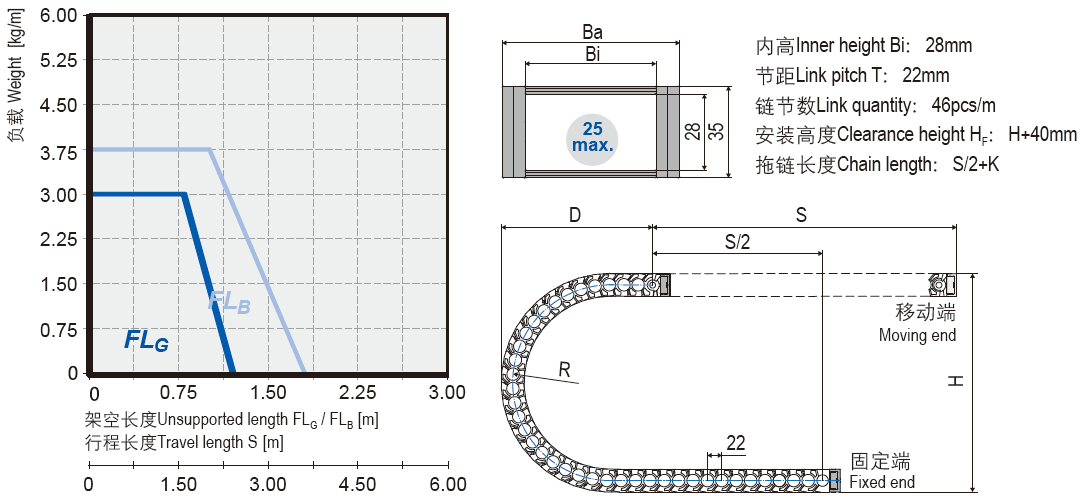

| R | 055 | 075 | 100 | 150 |
| H | 180 | 220 | 270 | 370 |
| D | 108 | 128 | 153 | 203 |
| K | 220 | 280 | 360 | 520 |
*The required clearance height：HF=H+15mm（Fill weight 0.3kg/m)
▊DURAMOV® Cable Chain Finder[V1.1] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations filler and installation data by entering parameters such as cables, gas tubes, oil tubes and installation data, The system will analyze your design data and finally output the adaptation cable chains.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the cable chains must be tested again to verify whether it meets the actual use requirements.
▊DURAMOV® Cable Chain Finder output data information is only for design reference, and can not be used as the final standard for determining the cable chains conformity, If you have any questions, please contact CSB® sales engineers.

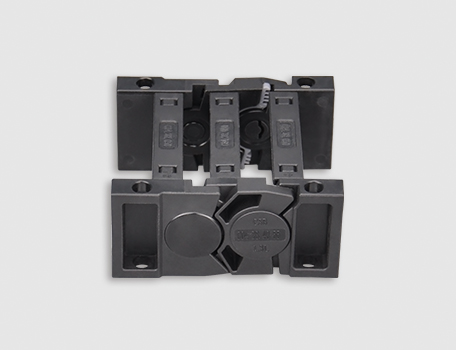

Small pitch for low-noise, smooth running, Two-pieces design, openable along the outer radius
Inner height: 15 to 20mm
Inner width: 16 to 50mm

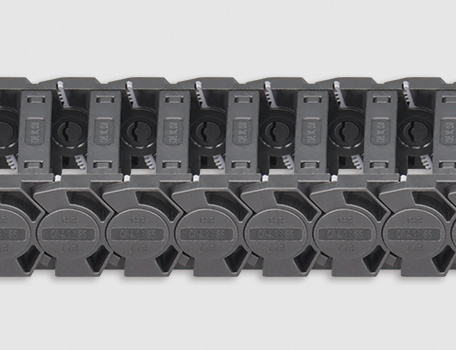

Small pitch for low-noise, smooth running, One-piece and open design
