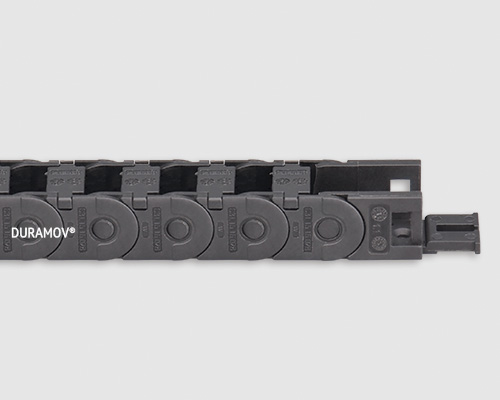

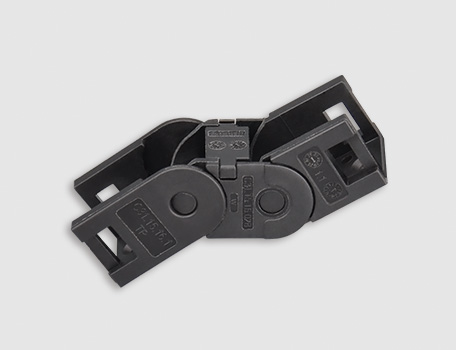

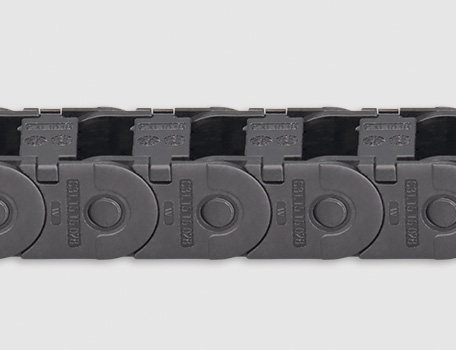

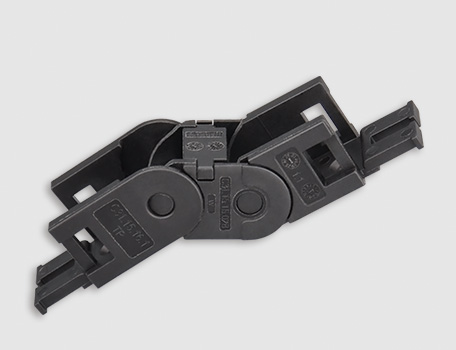

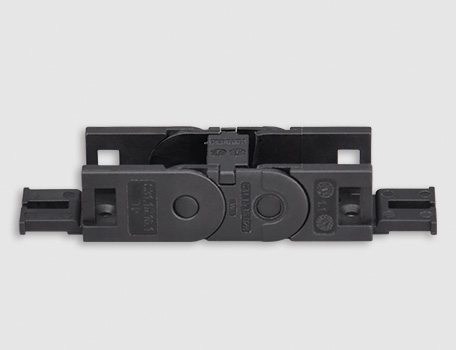

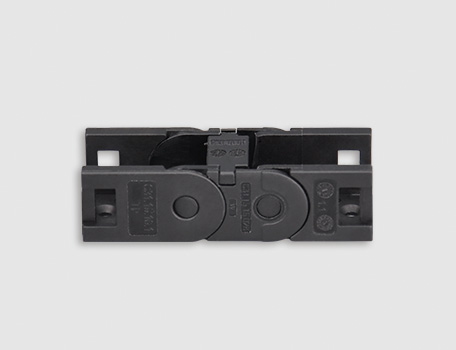

C31.10 micro cable carriers are openable along the outer radius or inner radius, strong and multi-opening method design, Suitable for highly dynamic applications and cables filled quickly. C31.10 micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.
● Long-term application temperature：-40/+120℃
● Inner height：10 mm
● Inner width：10-30 mm
● Bend radius：18-38 mm
● Link pitch：20 mm
Electrically conductive ESD/ATEX version C31E.10 upon request
 | Unsupported length | ≤ 0.7m | Speed / acceleration FLG | ≤ 3 [m/s] / 8 [m/s² ] | |
Sliding length | Inapplicable | Speed / acceleration FLB | ≤ 2 [m/s] / 4 [m/s² ] | ||
Vertical hanging | ≤ 5m | Sliding speed / acceleration | Inapplicable | ||
Vertical standing | ≤ 0.5m | Permitted temperature | -40℃ ~120℃ | ||
Side-unsupported length | ≤ 0.5m | Flammability Class | UL94 HB |

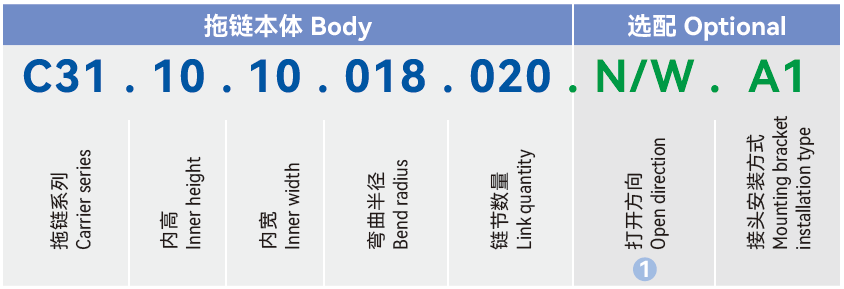

① N: Openable along the inner radius; W: Openable along the outer radius
● Quick fix the cable carriers along the length direction
● Available as an individual component
*Please consult CSB® if space is particularly restricted.
| R | 018 | 028 | 038 |
| H | 51 | 71 | 91 |
| D | 56 | 66 | 76 |
| K | 100 | 130 | 160 |
*The required clearance height：HF=H+10mm（Fill weight 0.75kg/m)
*C31.10 Possible installation configurations
*A1|A2|A3|A4 Please indicate installation code for pre-assembled chains
*For unsupported and gliding applications
▊DURAMOV® Cable Chain Finder[V1.1] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations filler and installation data by entering parameters such as cables, gas tubes, oil tubes and installation data, The system will analyze your design data and finally output the adaptation cable chains.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the cable chains must be tested again to verify whether it meets the actual use requirements.
▊DURAMOV® Cable Chain Finder output data information is only for design reference, and can not be used as the final standard for determining the cable chains conformity, If you have any questions, please contact CSB® sales engineers.
