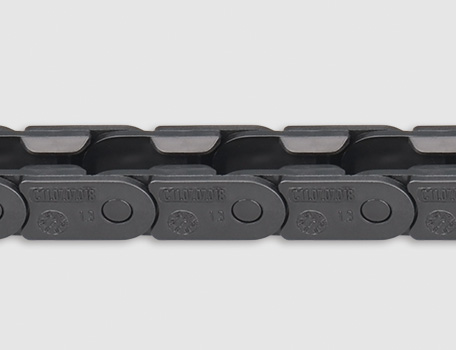

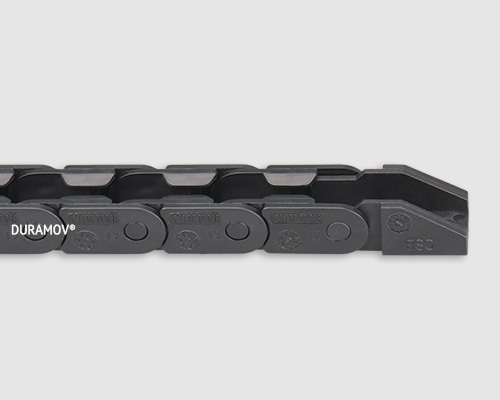

C11.07 micro cable carriers are very small, one piece and open design chains with low weight, making them ideal for highly dynamic applications and cables filled quickly. C11.07 micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.
● Long-term application temperature：-40/+80℃
● Inner height：7 mm
● Inner width：7-30 mm
● Bend radius：15-48 mm
● Link pitch：16.7 mm
 | Unsupported length | ≤ 0.5m | Speed / acceleration FLG | ≤ 3 [m/s] / 8 [m/s² ] | |
Sliding length | Inapplicable | Speed / acceleration FLB | ≤ 2 [m/s] / 4 [m/s² ] | ||
Vertical hanging | ≤ 5m | Sliding speed / acceleration | Inapplicable | ||
Vertical standing | ≤ 0.5m | Permitted temperature | -40℃ ~120℃ | ||
Side-unsupported length | ≤ 0.5m | Flammability Class | UL94 V2 |
Twist and click Press in cable Twist and divide
*Please consult CSB® if space is particularly restricted.

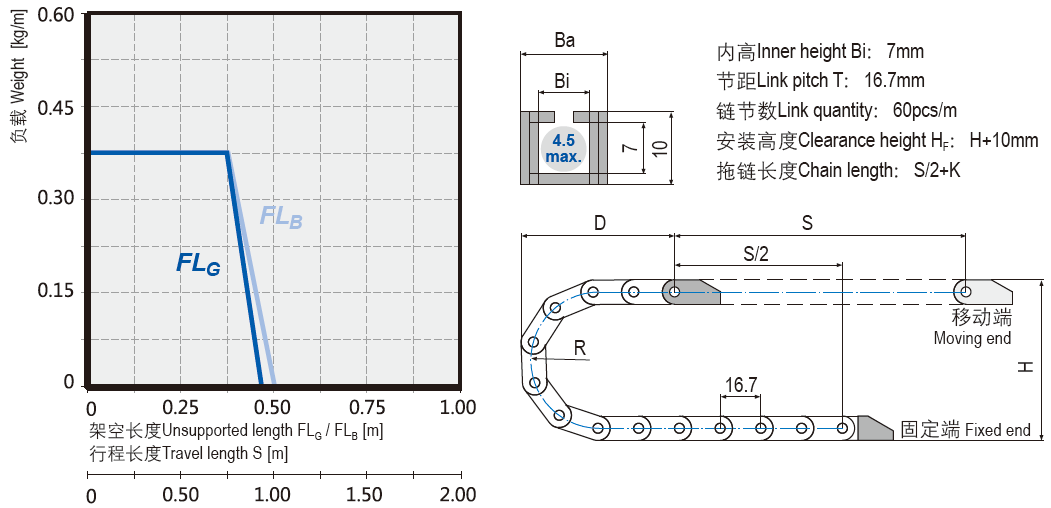

| R | 015 | 018 | 028 | 038 | 048 |
| H | 40 | 46 | 66 | 86 | 106 |
| D | 45 | 48 | 58 | 68 | 78 |
| K | 85 | 90 | 125 | 155 | 185 |
*The required clearance height：HF=H+10mm（Fill weight 0.1kg/m)

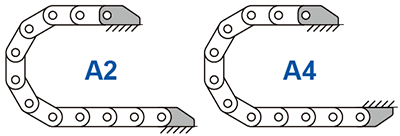

*C11.07 Possible installation configurations

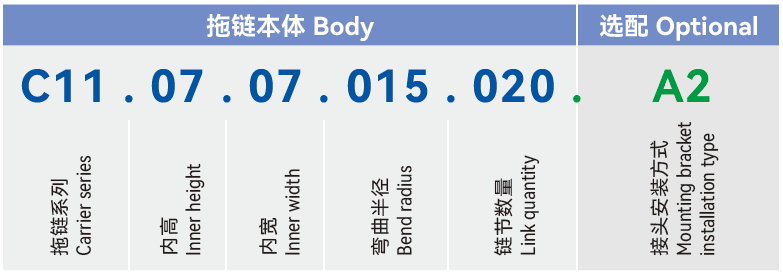

*A2|A4 Please indicate installation code for pre-assembled chains
*For unsupported and gliding applications
Small pitch for low-noise, smooth running, Two-pieces design, openable along the outer radius
Inner height: 15 to 20mm
Inner width: 16 to 50mm
Small pitch for low-noise, smooth running, One-piece design, non-openable
Inner height: 07 to 15mm
Inner width: 07 to 50mm
● Inner height：10 mm
● Inner width：10-20 mm
● Bend radius：18-38 mm
● Link pitch：20 mm
● Inner height：5 mm
● Inner width：5-10 mm
● Bend radius：10-18 mm
● Link pitch：10 mm
