Product Features

● Continuous working temperature: -40/+110℃

● Maintenance-free, self-lubricated

● Low friction, anti-wear

● Impact resistance, low noise

● Excellent dimensional stability

Material properties	Standard	Unit	CSB-M86
General properties
Color	-	-	Green
Density	ISO1183	g/cm³	1.14
Max. moisture absorption, 50%RH	ISO62	%	0.6
Max. water absorption	ISO62	%	2.0
Coefficient of sliding friction(steel)	ITS025	µ	0.10-0.18
Max. PV value	ITS026	N/mm²×m/s	0.50
Mechanical properties
Flexural modulus	ISO178	MPa	2300
Flexural strength	ISO178	MPa	90
Max. static load	ITS027	MPa	85
Max. dynamic load	ITS028	MPa	42
Shore hardness	ISO868	D	79
Physical and thermal properties
Long-term application temperature	ITS029	℃	+110
Short-term application temperature	ITS029	℃	+160
Lowest application temperature	ITS029	℃	-40
Thermal conductivity	ISO22007	W/m/K	0.25
Coefficient of thermal expansion	ISO11359	K^-1×10^-5	8
Flammability	UL94	Class	HB
Electrical properties
Volume resistance	IEC60093	Ω·cm	>10¹²
Surface resistance	IEC60093	Ω	>10¹²

*ITS：CSB company's internal test standards.

**Test temperatures are 23℃ unless otherwise stated.

Thickness-10mm

Thickness-15mm

Thickness-20mm

Thickness-25mm

Thickness-30mm

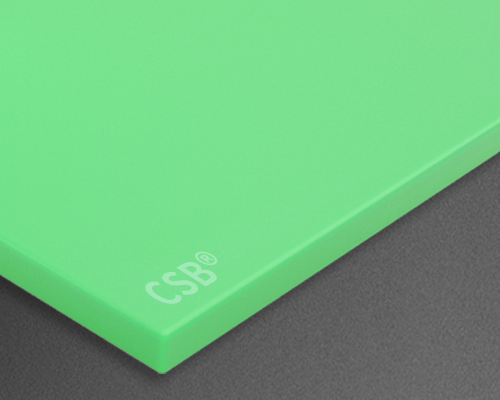

M86 Self-lubricating plastic plates

Part no.:

T [mm]：

T max. tolerance [mm]：

T min. tolerance [mm]：

W [mm]：

L [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

Medium	M81 Chemical resistance
Alcohol	Resistant
Hydrocarbons	Resistant
Greases. oils	Resistant
Fuels	Conditionally resistant
Diluted acids	Resistant
Strong acids	Not resistant
Diluted alkalis	Resistant
Strong alkalis	Resistant

CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.
