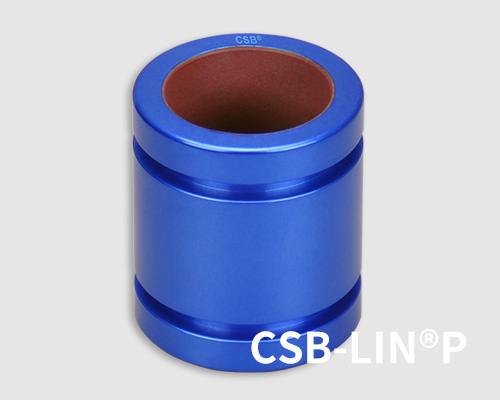

LINPG-12R Short precision linear bearings

Product Features

●Closed and short design

●High precision similar to preloaded ball bearing

●Lower starting friction liner materials TEFPLAS^® G

●Anodized aluminum adapter

●Maintenance-free and low noise

●Operation temperature ±200℃

Standard precision

Compensated Clearance

LINPG-12R Short precision linear bearings

Part no.:

d1 F8[mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 h7[mm]：

B h10[mm]：

O H10[mm]：

do h10[mm]：

e [mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊Sliding layer materials TEFPLAS^®

TEFPLAS^® B is a standard sliding layer material. It combines high load bearing and wear resistance performance , suitable for hard shafts ≥HRC35 or hard anodized aluminum shafts.

TEFPLAS^® G has excellent wear resistance, suitable for hard shafts or hard anodized aluminum shafts.

TEFPLAS^® E FDA food contact safety materials, suitable for stainless steel shaft or aluminum shaft.

▊Load capacities of LINPG-12R linear bearings

Part No.	Shaft	Housing	Max. dynamic Load	Max. static Load	Weight
Part No.	[mm]	[mm] H7	[N]	[N]	[g]
LINPG-12R-08	8	15	1536	3072	7
LINPG-12R-10	10	17	2080	4160	9
LINPG-12R-12	12	19	2688	5376	11
LINPG-12R-16	16	24	3840	7680	18
LINPG-12R-20	20	28	4800	9600	23
LINPG-12R-25	25	35	8000	16000	44
LINPG-12R-30	30	40	12000	24000	65
LINPG-12R-40	40	52	19200	38400	123
LINPG-12R-50	50	62	28000	56000	177

Precision shafts

AS: Hard anodized aluminum shaft, the best shaft for LIN linear bearings; CS: Hard-chromed steel shaft, the effective-cost shaft; ES: 304 Stainless steel shaft, the best for chemical liquid; Shaft end processing service...

Details

▊CSB-LIN®P Eccentric forces

●Maximum 2:1 ratio
●1x =bearing separation on same shaft
●2x =distance from shaft to load or force

CSB-LIN® Precision linear bearings

●CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !
This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.
There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.
NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.
If you have any questions on design and/or assembly, please contact our application engineers.
