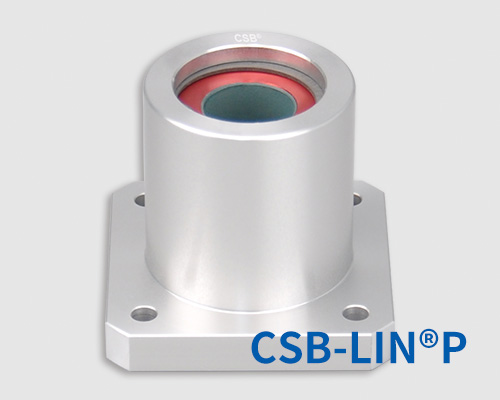

LINPB-11RT-IN Flange precision linear bearings

Product Features

● Closed design with square ﬂange

● High precision similar to preloaded ball bearing

● Standard liner material TEFPLAS^®B

● Self-aligning aluminum housing

● Secured by bolts

● Maintenance-free and low noise

● Operation temperature ±200℃

LINPB-11RT-IN Flange precision linear bearings

Part no.:

d1-min. [Inch]：

d1-max. [Inch]：

d2 [Inch]：

B [Inch]：

Bf [Inch]：

dt [Inch]：

K [Inch]：

S1 [Inch]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊Sliding layer materials TEFPLAS^®

TEFPLAS^® B is a standard sliding layer material. It combines high load bearing and wear resistance performance , suitable for hard shafts ≥HRC35 or hard anodized aluminum shafts.

TEFPLAS^® G has excellent wear resistance, suitable for hard shafts or hard anodized aluminum shafts.

TEFPLAS^® E FDA food contact safety materials, suitable for stainless steel shaft or aluminum shaft.

▊Load capacities of LINPB-11RT-IN linear bearings

Part No.	Shaft	Housing	Max. dynamic Load	Max. static Load	Weight
Part No.	[Inch]	[Inch]	[N]	[N]	[g]
LINPB-11RT-06-IN	3/8	0.3750	2082	4164	31.8
LINPB-11RT-08-IN	1/2	0.5000	3985	7971	79.4
LINPB-11RT-12-IN	3/4	0.6250	7793	15587	210.0
LINPB-11RT-16-IN	1	0.8750	14424	28847	547.0
LINPB-11RT-20-IN	1-1/4	1.1250	21055	42110	830.1

Precision shafts

AS: Hard anodized aluminum shaft, the best shaft for LIN linear bearings; CS: Hard-chromed steel shaft, the effective-cost shaft; ES: 304 Stainless steel shaft, the best for chemical liquid; Shaft end processing service...

Details

▊CSB-LIN®P Eccentric forces

●Maximum 2:1 ratio
●1x =bearing separation on same shaft
●2x =distance from shaft to load or force

CSB-LIN® Precision linear bearings

●CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !
This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.
There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.
NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.
If you have any questions on design and/or assembly, please contact our application engineers.

CSB®LINPB-11RT-IN Angular flange linear bearings 1008
