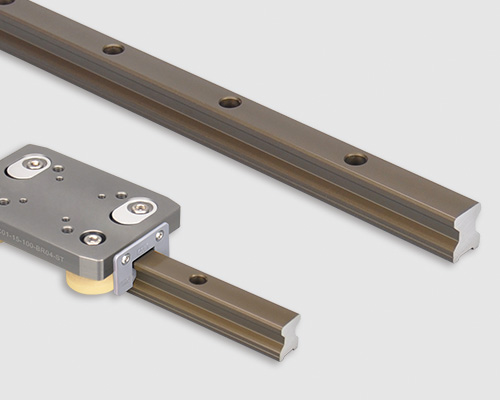

● Small installation width from 15 to 23 mm
● The installation width and the holes are consistent with the standard ball guide rails
● Made of hard anodized surface of aluminum alloy
● Available longer design by the guide rails connection
● Maintenance-free with HRC roller carragies
● Lightweight design
● Very quiet carriages with clearance adjustment
● Very suitable for high speed applications, the speed up to 10m/s
● Max. long-term temperature: 70℃
● High temperature carriages with clearance adjustment
● Very suitable for high speed applications, the speed up to 10m/s
● Max. long-term temperature: 120℃
● Standard anti-wear carriages with clearance adjustment
● Very suitable for high speed applications, the speed up to 10m/s
● Max. long-term temperature: 90℃
The rolling friction design of HR linear guide is not limited by the 2:1 rule of sliding guide, but it should be noted that the force on the roller caused by the eccentric force increases exponentially with the leverage effect.
● Dual guide rails made of aluminum
● Hard anodized surface
● Weight saving and no noise
● Standard fitting width
AS: Hard anodized aluminum shaft, the best shaft for LIN linear bearings; CS: Hard-chromed steel shaft, the effective-cost shaft; ES: 304 Stainless steel shaft, the best for chemical liquid; Shaft end processing service...
Compact and low high design support;
Standard design support;
3 materials shaft: Hard anodized aluminum shaft, Hardchromed steel shaft, 304 Stainless steel shaft;
