Product Features

In comparison to steel units, ball transfer units out of plastics are non-conductive, resistant to acid and lye, no lubrication, maintenance-free low friction, low weight (up to 70 % less), appropriate for vacuum or pressure, saltwater-proof, free of metallic components depending on selection of materials, transport of fragile goods such as glass, available use in explosive atmosphere and aseptic areas (e. g. medical technology), customized design possible.

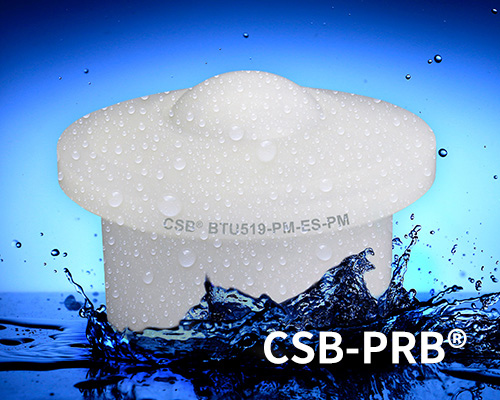

BTU Ball transfer units

Part no.:

d1 [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 ±0.10 [mm]：

h1 [mm]：

h2 ±0.20 [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊BTU Ball transfer units load capacity

Part No.	*Max. axial static load
Part No.	[N]
BTU508-PM-ES-PM	45
BTU512-PM-ES-PM	55
BTU515-PM-ES-PM	70
BTU519-PM-ES-PM	85
BTU522-PM-ES-PM	100
BTU525-PM-ES-PM	120
BTU530-PM-ES-PM	150
BTU538-PM-ES-PM	175
BTU545-PM-ES-PM	200
BTU560-PM-ES-PM	300

*Max. static load depending on selection of materials

▊BTU Ball transfer unit optional materials

Housing			Transfer balls			Support balls
PM	POM	Standard materials -40/+90℃	PM	POM	Standard materials -40/+90℃	PM	POM	Non-magnetic and lightweight -40/+90℃
PK	PEEK	High-load & Anti-corrosion -100/+250℃	ES	Stainless steel	High-load	ES	Stainless steel	Standard materials
PT	PET	Medical radiation -40/+100℃	ZO	Ceramic	High-load & Anti-corrosion -200/+400℃	ZO	Ceramic	High-load&Anti-corrosion -200/+400℃
PS	PPS	High-load & Anti-corrosion -40/+200℃	PK	PEEK	High-load & Anti-corrosion -100/+250℃	PK	PEEK	High-load&Anti-corrosion -100/+250℃
PF	PVDF	Vacuum applications -50/+150℃	GL	Glass	Lightweight and low cost -200/+400℃	GL	Glass	Lightweight and low cost -200/+400℃

CSB-PRB® BTU Ball transfer units 1625

Time 06-2022

Type PDF

No. CSB/CAT.062E

Size 153KB

1625

download

CSB-PRB®

Plastic Ball Bearings Finder V2.0

view tools

CSB-PRB® Plastic Ball Bearings Finder V2.0

▊CSB-PRB® Plastic Ball Bearings Finder[V2.0] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations material data by entering parameters such as bearing load, speed, and temperature, and finally output material adaptation data.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-PRB® Plastic Ball Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.
