▋EPB13 material has been widely used in automation equipment, pharmaceutical machinery, food packaging and beverage filling industries as high wear-resistant plastic linear bearings, plastic bearings and other bearing products; at the same time, as a wear-resistant plastic sheet, it can be used for processing and is not suitable for injection molding Process thick-walled parts, wear-resistant sliding plates, wear-resistant plastic screw nuts and other industrial parts. CSB® Plastic Bearing Technology Co., Ltd. has added 3 standard specification stocks of EPB13 maerial sheets, which can meet the 24-hour delivery requirement.
New standard sheet stocks：
EPB13-06-0600-1200
EPB13-08-0600-1200
EPB13-12-0600-1200
 |

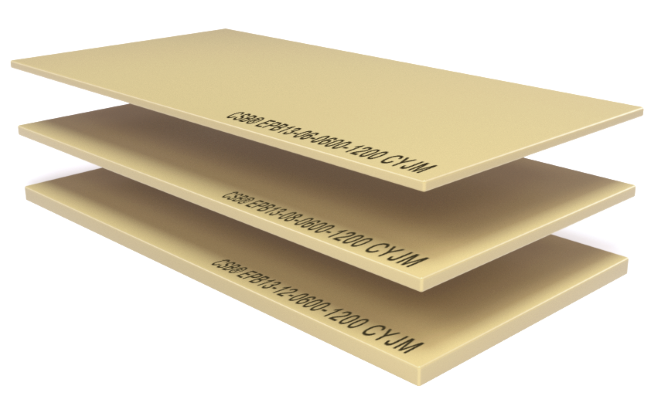

▋High wear-resistant material sheet made of EPB13 standard material, standard sheet is available in various specifications: width 600mm, length 1200mm, thickness from 6mm to 30mm.. ● Continuous working temperature: -50/+90℃● Maintenance-free dry operation ● Small wear off amount against various shaft materials ● Lower friction ● Suitable for soft shaft ● Low water absorption ▋CSB® also provides highly wear-resistant rods made of EPB13 standard materials. Standard round rods are available in various specifications: length 1000mm, diameter from 15mm to 65mm, which can be used for rapid machining of plastic bearing samples and machining wear-resistant Plastic nuts, thick-walled or non-standard bearings |
▋Machining of EPB13 high wear-resistant plates and bars can use rapid cutting steel and alloy steel tools, etc., but it is necessary to ensure that the tools are sharp; the processing parameters are as follows:
| Processing | Turning | Milling | Drilling |
| Clearance angle | 2-10° | 2-30° | 3-16° |
| Rake angle | 0-8° | 0-15° | 5-30° |
| Setting angle | 45-60° | - | - |
| Tip angle | - | - | 90-130° |
| Cutting speed | 100-500 m/min | 80-500 m/min | 20-200 m/min |
| Feed rate | 0.05-0.5 mm/rpm | 0.02-0.3 mm/rpm | 0.02-0.3 mm/rpm |
